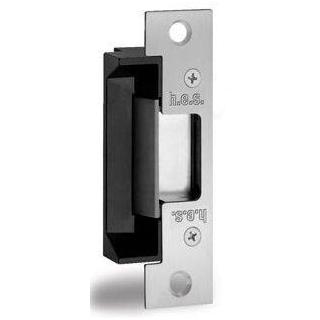

HES 5000-501 630 Electric Strike Kit 12/24DC NFS Electric Strike w/501 Opt 12 or 24VDC FS/NFS Field Selectable, Satin Stainless Steel

5000 Series - HES Electric Strike
Accomodates 5/8" latch bolts
12VDC or 24VDC - continous duty
Satin Stainless Steel (630) finish

The 5000 Series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. The field selectable fail secure/fail safe unit is easy to install and accommodates 1/2" to 5/8" latchbolts.

HES 5000 Series Face Plates
501 Face Plate, 4-7/8" x 1-1/4". For ANSI jamb prep. Does not require removal of the dust box.
501A Face Plate, 4-7/8" x 1-1/4". 1/8" Radius corners for installation in aluminum jambs. Includes universal mounting tabs.

Features and Benefits:
- Tamper resistant.
- Static strength 1500 lbs.
- Dynamic strength 70 ft.-lbs.
- Endurance 500,000 cycles.
- Field selectable fail secure/fail safe.
- Dual voltage 12 or 24 VDC/VAC.
- Non-handed.
- Internally mounted solenoid.
- Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap).
- Strike body depth 1-1/16".
- Plug-in connector.
- Trim enhancer included.
- Frame application: Metal & Wood.

Specification Data:
- UL 1034, burglary-resistant listed.
- ANSI/BHMA A156.31, Grade 1.

Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only

Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
