HES 5200-12/24VDC/VAC-501A-630 Series Low Profile Heavy Duty Universal Electric Strike

  • SKU: 52001224VDCVAC501A630

HES 5200-12/24VDC/VAC-501A-630 Series Low Profile Heavy Duty Universal Electric Strike

  • SKU: 52001224VDCVAC501A630
Sale price$333.00/ea
In Stock
In Stock

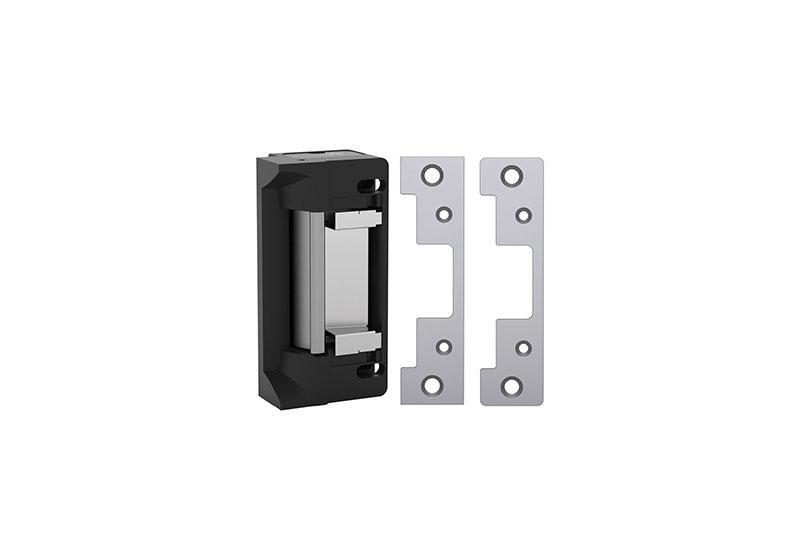

HES 5200-12/24VDC/VAC-501A-630 Series Low Profile Heavy Duty Universal Electric Strike, Satin Stainless Steel

The hes 5200 Series Universal Electric Strike is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. The field selectable fail secure/fail safe unit is easy to install.

The hes 5200 strike has a satin stainless steel finish (630) and accommodates 3/4" latch bolts. It also has 12VDC or 24VDC options for continuous duty.

HES 5200 Strike Face Plates

501A Face Plate, 4-7/8" x 1-1/4". 1/8" Radius corners for installation in aluminum jambs. Includes universal mounting tabs.

Specification Data:

- UL 1034, burglary-resistant listed.
- ANSI/BHMA A156.31, Grade 1.

Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only

Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
