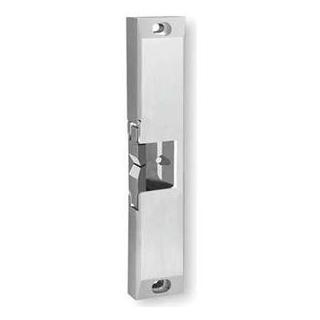

9500 Series - HES Electric Strike, 613 - Bronze Toned

With a new enhanced design, the 9500 Series continues to set the standard for fire-rated surface-mounted electric strikes. All components are completely encased within its 3/4" thick stainless steel housing-requiring no cuts to the jamb. Designed for use with rim exit devices, the 9500 series is field selectable to either fail-secure or fail-safe operation and can be operated with either 12 or 24 Volts DC.

Features and Benefits:

- Completely surface mounted.
- Stainless steel construction.
- Tamper resistant.
- Static strength 1,500 lbs.
- Dynamic strength 70 ft.-lbs.
- Endurance 500,000 cycles.
- Field selectable fail safe/fail secure.
- Dual voltage 12 or 24 VDC.
- Horizontal adjustment.
- Non-handed.
- Internally mounted solenoid.
- Accommodates up to 3/4" pullman latch.
- Frame application: Metal & Wood.
- Available in Satin Stainless Steel (630) and Bronze Toned (613)

Specification Data:

- UL 10C fire-rated, 3 hour (fail secure).
- CAN4-S104 (ULC-S104) fire door conformant.
- WHI fire door listed.
- UL 1034, burglary-resistant listed.
- ANSI/BHMA A156.31, Grade 1 (#E09731, #E09732, #E09373).
- NFPA-252 fire door conformant.
- ASTM-E152 fire door conformant.
- California Fire Marshall listed.
- NFPA 80-07 compliant.

Electrical:
.45 Amps @ 12VDC continuous duty
.25 Amps @ 24VDC continuous duty

Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure
