All IVES Products

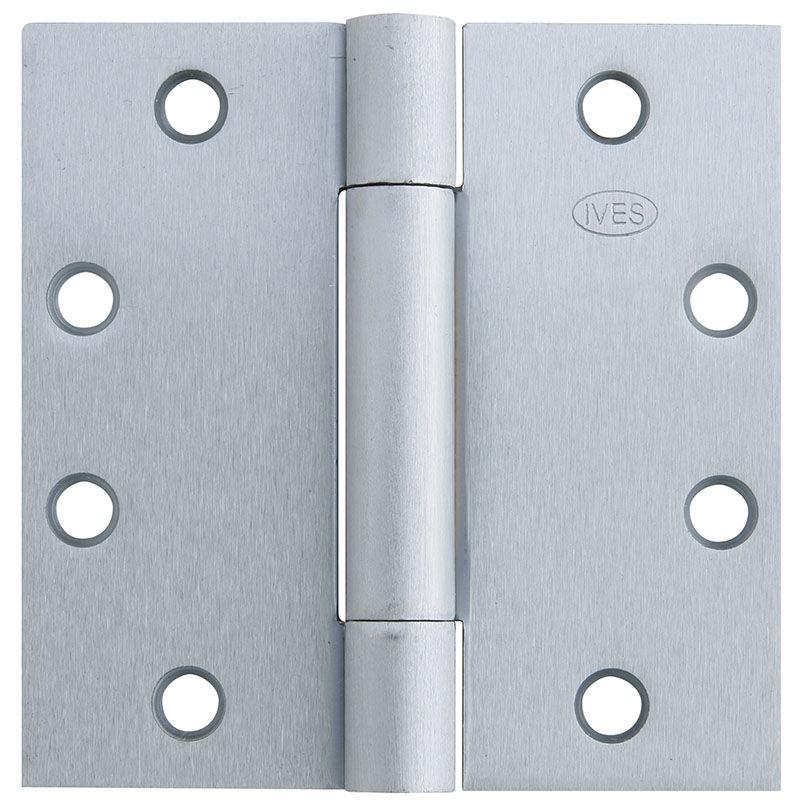

Ives 3CB1 4.5X4.5 3-Knuckle Concealed Bearing Hinge

  • SKU: 3CB14545626
Ives 3CB14.5X4.5626
Ives 3CB14.5X4.5626
All IVES Products

Ives 3CB1 4.5X4.5 3-Knuckle Concealed Bearing Hinge

  • SKU: 3CB14545626
$121.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Ives 3CB1 4.5X4.5 3-Knuckle Concealed Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2"

  • Recommended for medium weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two concealed nylon bearings
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors

Ives 3CB1 Certifications

  • Certified to ANSI/BHMA A156.1 for performance standards
  • Meets ANSI/BHMA 156.7 for template hinge dimensions
  • UL Classified for windstorm-rated assemblies - R37965
  • UL Listed, 3-hour fire doors
Manufacturer Ives
SKU 3CB1 4.5X4.5
Installation Commercial
Origin —
Unit of Measure Each



Hinge Type Hinge, Full Mortise
Mounting Style Square
Knuckles 3
Bearing Type Concealed Bearing
Pin Type Removable
Tip Style Standard
Height 4-1/2"
Width 4-1/2"
Weight Standard Weight
Product Type Hinges
Product Cut Sheet
