Description

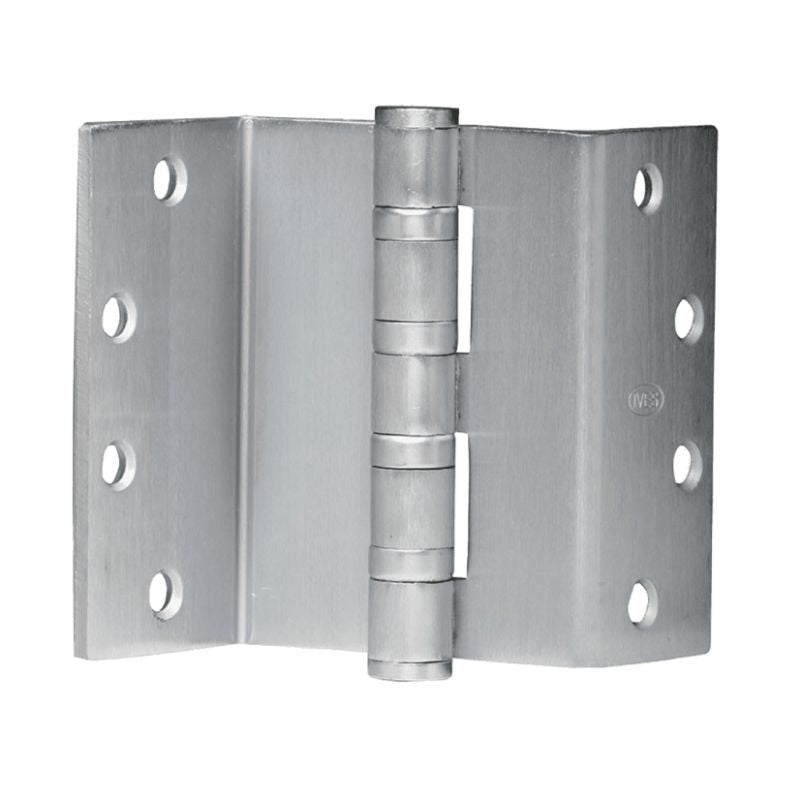

Ives 5BB1BSCHW 5 Knuckle, ball bearing, beveled swing clear, heavy weight full mortise hinge, 4 1/2", Satin Stainless Steel
- Designed to completely clear the opening when door is opened 92°
- Recommended for use in ADA door opening applications
- 5BB1BSCHW made for beveled edge doors
- Recommended for heavier weight doors (>150 lbs)
- Recommended for high-frequency usage (400 cycles per day)
- Made with four ball bearing assemblies
- Packed with fasteners for hollow metal and wood doors:
12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
Certifications
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
Product Specs
| Manufacturer | Ives |
| SKU | 5BB1BSCHW 4.5 630 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Mounting Style | Square |
| Knuckles | 5 |
| Bearing Type | Ball Bearing |
| Pin Type | Removable |
| Tip Style | Standard |
| Height | 4-1/2" |
| Gauge | 0.180 |
| Weight | Heavy Weight |
| Product Type | Hinges |
