Ives 5BB1HW 4.5X4.5 Heavy Weight Ball Bearing Hinge

  • SKU: 5BB1HW4545626
Ives 5BB1HW 4.5X4.5 626
Ives 5BB1HW 4.5X4.5 626
All IVES Products

Ives 5BB1HW 4.5X4.5 Heavy Weight Ball Bearing Hinge

  • SKU: 5BB1HW4545626
$114.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Technical Specs

Hinge Type Hinge, Full Mortise
Mounting Style Square
Knuckles 5
Bearing Type Ball Bearing
Pin Type Removable
Tip Style Standard
Height 4-1/2"
Width 4-1/2"
Weight Heavy Weight
Product Type Hinges

Product Specs

Manufacturer Ives
SKU 5BB1HW 4.5X4.5
Installation Commercial
Origin —
Unit of Measure Each

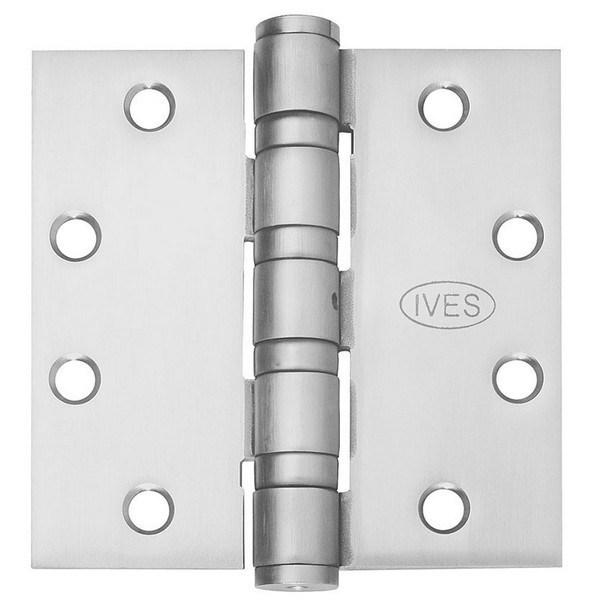

Ives 5BB1HW 4.5X4.5 Heavy Weight 5-Knuckle Ball Bearing Hinge, 4-1/2" x 4-1/2"

  • Recommended for heavier weight doors (>150 lbs)
  • Recommended for high-frequency usage (400 cycles per day)
  • Made with four ball bearing assemblies
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors(12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS)

Ives 5BB1HW Certifications

  • Certified to ANSI/BHMA A156.1 for performance standards
  • Meets ANSI/BHMA 156.7 for template hinge dimensions
  • UL Classified for windstorm rated assemblies - R37965
  • UL Listed, 3-hour fire doors
