Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Mounting Style | Square |
| Knuckles | 5 |
| Bearing Type | Ball Bearing |
| Pin Type | Removable |
| Tip Style | Standard |
| Height | 5" |
| Width | 4.5" |
| Weight | Heavy Weight |
| Product Type | Hinges |
Product Specs
| Vendor | Allegion |
| Manufacturer | Ives |
| SKU | 5BB1HW 5.0X4.5 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Steel |

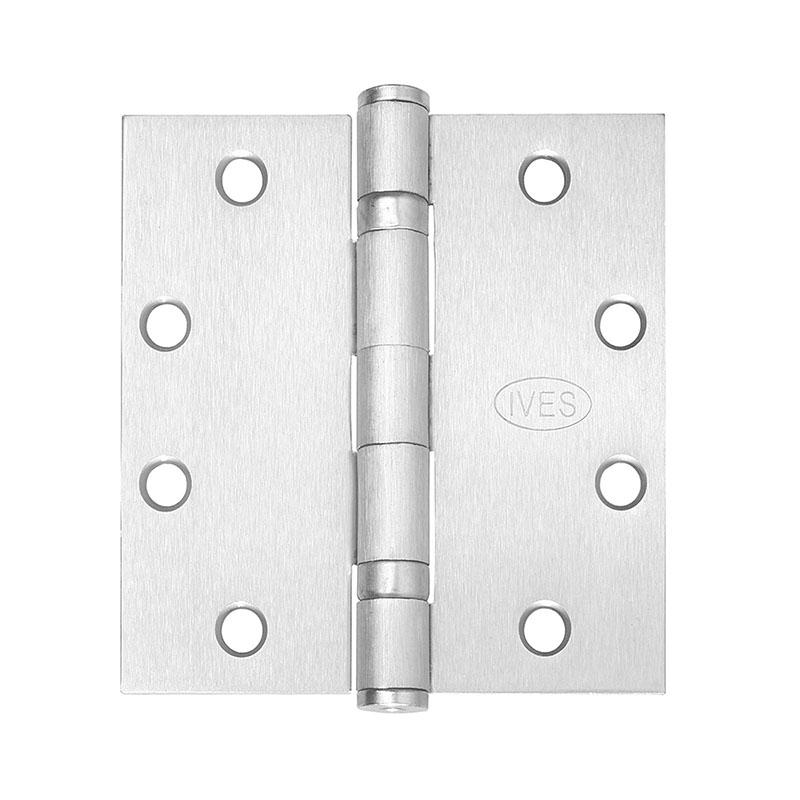

Ives 5BB1HW 5.0X5.0 5-Knuckle Ball Bearing Hinge, Heavy Weight Full Mortise Hinge, 5" Height x 4.5" Width
- Recommended for heavier weight doors (more than 150 Lbs.)
- Recommended for high-frequency usage(400 cycles per day)
- Made with four ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors:
- 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
Ives 5BB1HW Certifications
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Classified for windstorm rated assemblies - R37965
- UL Listed, 3-hour fire doors
