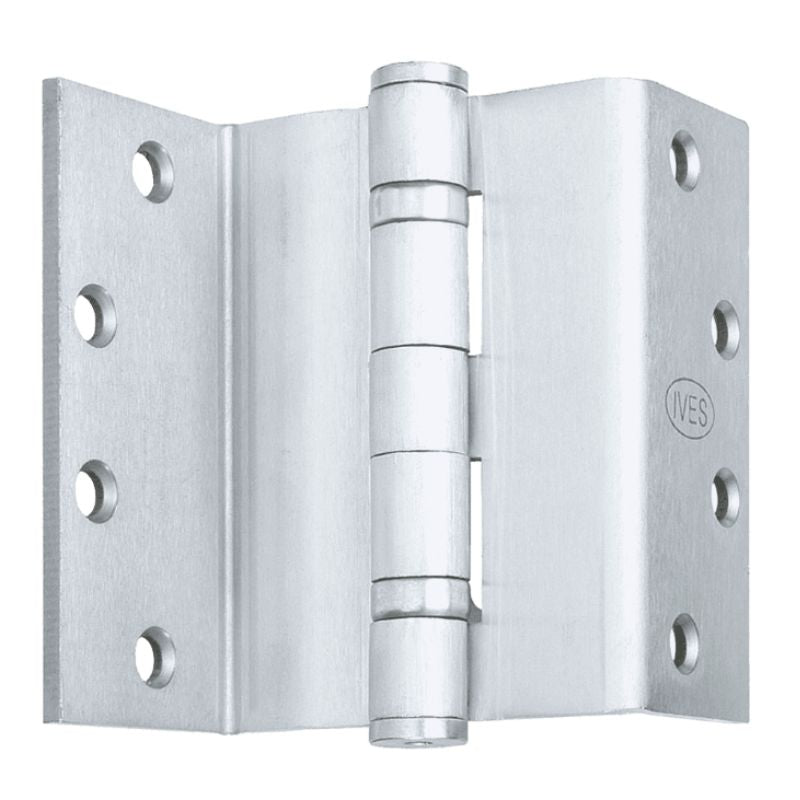

Ives 5BB1SC 4.5" Swing Clear Ball Bearing Hinge

  • SKU: 5BB1SC45652
Ives 5BB1SC 4.5" Swing Clear Ball Bearing Hinge
Ives 5BB1SC 4.5" Swing Clear Ball Bearing Hinge
All IVES Products

Ives 5BB1SC 4.5" Swing Clear Ball Bearing Hinge

  • SKU: 5BB1SC45652
$129.00/ea
In Stock
In Stock
Finish: US26D-652 Satin Chrome (Steel)
Choose Your Product Options:
Choose Region *
Painting Format *
Image Resolution *
Frame
Portrait Canvas Size (With Frame) *
Add HQ Digital Image
Mint as NFT

Technical Specs

Hinge Type Hinge, Full Mortise
Mounting Style Square
Knuckles 5
Bearing Type Ball Bearing
Pin Type Removable
Tip Style Standard
Height 4-1/2"
Gauge 0.180
Weight Standard Weight
Product Type Hinges

    Product Specs

    Manufacturer Ives
    SKU 5BB1SC 4.5
    Installation Commercial
    Origin —
    Unit of Measure Each


    Ives 5BB1SC 4.5" 5-Knuckle Ball Bearing Hinge, Standard Weight, 4.5" Swing Clear

    • Designed to completely clear the opening when door is opened 92°
    • Recommended for use in ADA door opening applications
    • 5BB1SC made for square edge doors
    • Recommended for heavier weight doors (>150 lbs)
    • Recommended for high-frequency usage (400 cycles per day)
    • Made with four ball bearing assemblies
    • Packed with fasteners for hollow metal and wood doors:
      12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS

    Certifications

    • Certified to ANSI/BHMA A156.1 for performance standards
    • Meets ANSI/BHMA 156.7 for template hinge dimensions
