Technical Specs
| Product Type | Pivots |
Product Specs
| Vendor | Allegion |
| Manufacturer | Ives |
| SKU | 7253 SET |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | VARIES |

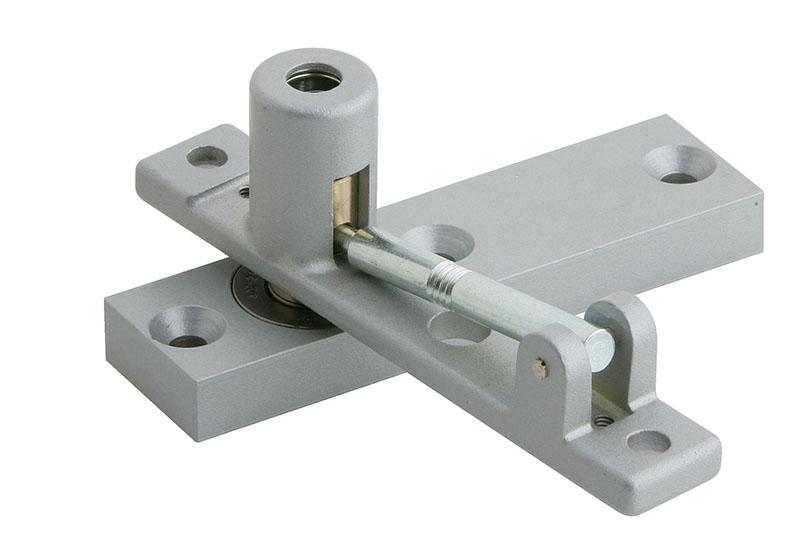

Ives 7253 Center hung pivot, 1 1/2" Center hung, 300lb with bottom base mount
- Maximum door load 300 pounds
- Recommended for use with 1-3/4" minimum door thickness
- Not recommended for doors larger than 4'0" X 8'0"
- Easy installation, tilt on bearing and bearing pin
- Adjustable floor to door clearance 3/16" to 3/4", consult product support if greater than 3/4"
- Vertical adjustment range 3/16", with positive locking
- Non-handed
- 7253 Set (7253 Top and 7253 Btm)
- 7253 Top, header mount
- 7253 Btm (7253 Btm), base plate mount
Certifications
- Meets ANSI/BHMA A156.4 C07032
- UL Listed, 20 minute fire doors
