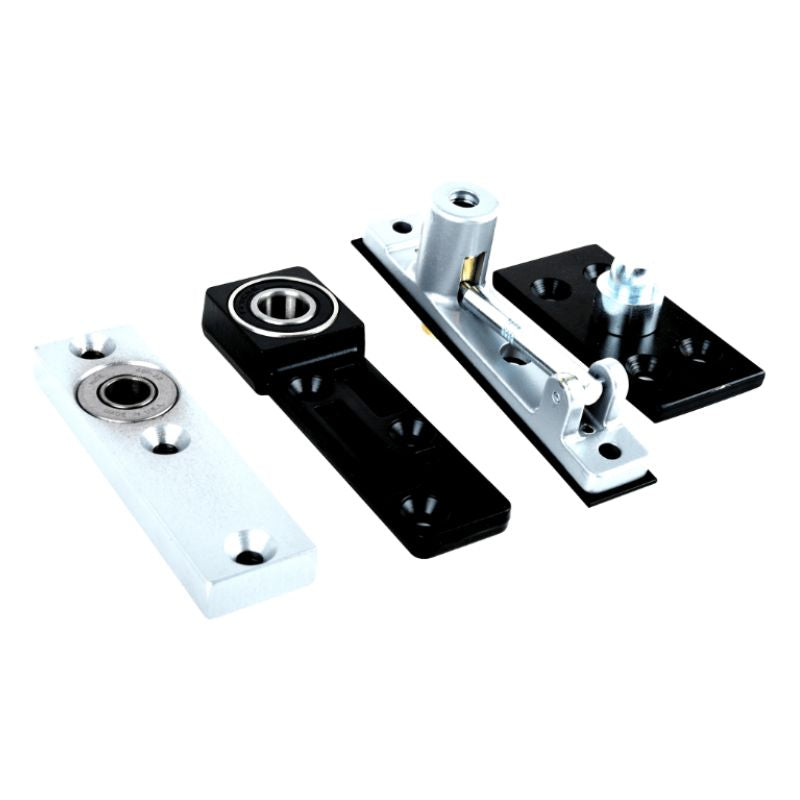

Ives 7255 Center hung pivot, 1 1/2" Center Hung 500lb with bottom base mount, Top and Bottom Set

• Maximum door load 500 pounds
• Recommended for use with 1-3/4" minimum door thickness
• Not recommended for doors larger than 4'0" X 8'0"
• Easy installation, tilt on bearing and bearing pin
• Adjustable floor to door clearance 3/16" to 3/4", consult product support if greater than 3/4"
• Vertical adjustment range 3/16", with positive locking
• Non-handed

Certifications

• Meets ANSI/BHMA A156.4 C07032
• UL Listed, 20-minute fire doors
