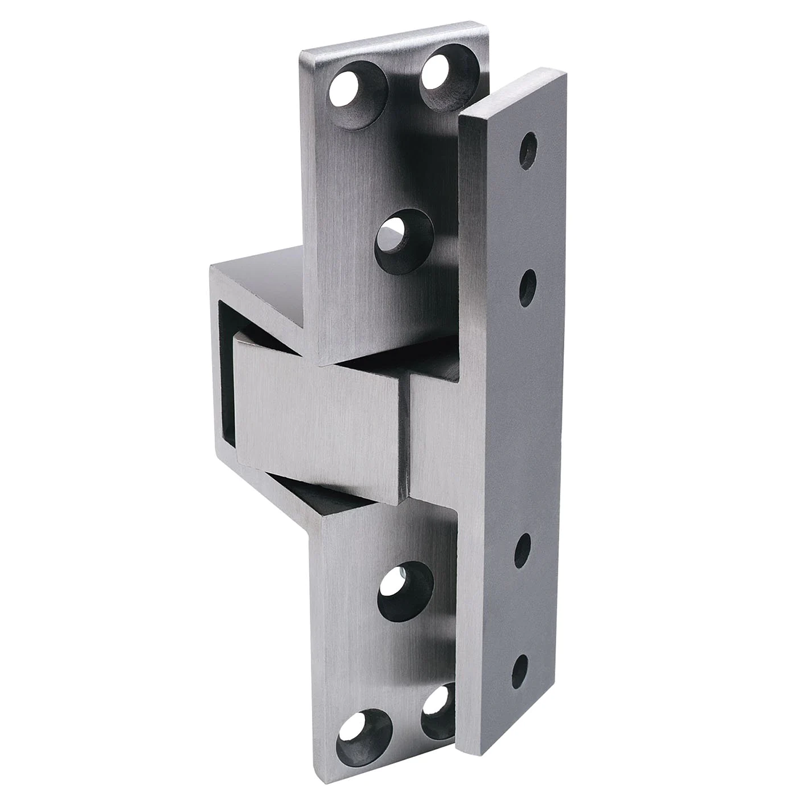

Ives 91105F US32D Pocket Pivot, Satin Stainless Steel

  • SKU: 91105FUS32D

Ives 91105F US32D Pocket Pivot, Satin Stainless Steel

  • SKU: 91105FUS32D
Sale price$665.00/ea
In Stock
In Stock

Ives 91105F US32D Pocket pivot/hinge, fire rated - Made from 304 series stainless steel

Features:

  • Maximum door load of 90 pounds per pivot
  • Use three pivots for doors 7'0" tall and one every 2'6" for taller doors as needed
  • Full mortise
  • Recommended for use with 1-3/4" door thickness only
  • Not recommended for doors larger than 4'0" X 8'0"
  • Not recommended for wood frames
  • Allows door to open a full 90°
  • Non-handed
  • Meets ANSI/BHMA A156.4 C07611
  • UL Listed, 3-hour fire doors
