Description

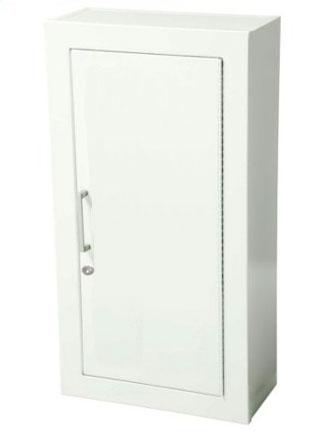

JL Industries 1013-G-10 Ambassador Series - Steel Fire Extinguisher Cabinet - Full clear acrylic with Saf-T-Lok
JL's Most Popular Painted Steel Cabinet with 10 Door Styles For Recessed, Semi-Recessed, or Surface-Mounted Installation.
Features
- Full clear acrylic with pull handle
- Cold rolled steel with white powder-coat finish standard
- Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with a zinc-plated handle and roller catch.
Specifications
| Door and Trim Construction: | Cold rolled steel with white powder-coat finish standard. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. |
| Trim Style and Depth: | Recessed - 3/8" flat trim or trimless. Semi-Recessed - 1 1/4", 1 1/2" Square Edge or 2 1/2", 3", 4" (recessed pull), 4 1/2" Rolled Edge. Surface-mount has a square edge or optional rolled edge upon request. 1 3/4" face trim on frame and door. |
| Tub: | Constructed of cold rolled steel with white powder-coat finish standard. |
| Tub I.D. : | Width:13 7/8'' Height: 27 3/8'' Depth: 6'' |
| Frame O.D.: | 13 7/8'' x 27 3/8'' |
| Accommodated Extinguishers: | Cosmic & Galaxy 2.5 - 10, Mercury 2.5. - 5, Sentinel 5 |
