Description

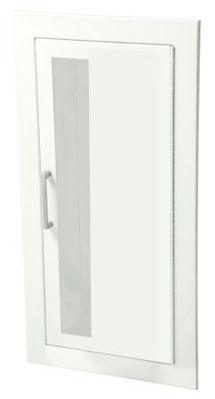

JL Industries 1015-V-10 Ambassador Series - Steel Fire Extinguisher Cabinet - Vertical Duo Panel Clear Tempered Glass with Pull Handle
JL's Most Popular Painted Steel Cabinet with 10 Door Styles For Recessed, Semi-Recessed, or Surface-Mounted Installation.
Features
- Vertical duo panel clear acrylic with pull handle
- Cold rolled steel with white powder-coat finish standard
- Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with a zinc-plated handle and roller catch.
Specifications
| Door and Trim Construction: | Cold rolled steel with white powder-coat finish standard. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. |
| Trim Style: | Flat Trim |
| Tub: | Constructed of cold rolled steel with white powder-coat finish standard. |
| Tub I.D. : | Width:10 1/2'' Height: 24'' Depth: 6'' |
| Wall Opening Non-Rated: | Width:11-1/2'' Height: 25'' Depth: 6-1/4'' |
| Frame O.D.: | 13 7/8'' x 27 3/8'' |
| Accommodated Extinguishers: | Cosmic & Galaxy 2.5 - 10 Mercury 2.5. - 5 Sentinel 5 |
