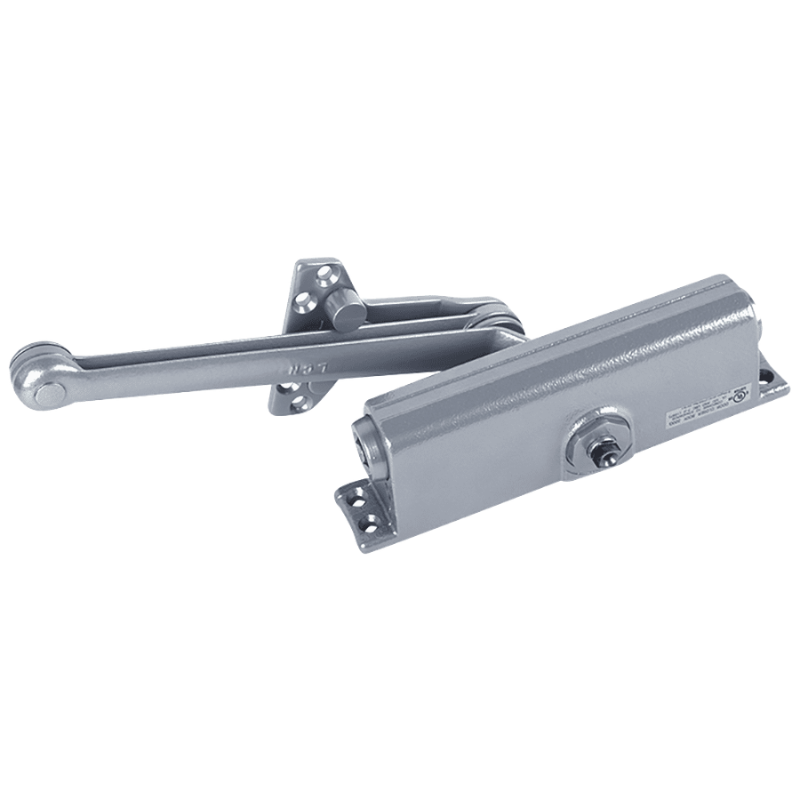

LCN 1261-CUSH Surface Door Closer, Cush-N-Stop Arm, Push Side Parallel Arm Mounting, Up To 110 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Grade 1, Non Handed

The LCN 1261-CUSH Surface Door Closer is a heavy-duty, Grade 1 commercial solution engineered for high-traffic environments where durability and wall protection are paramount. Featuring a specialized Cush-N-Stop (CUSH) arm, this closer provides a built-in mechanical stop at 110 degrees to cushion the door’s swing, effectively shielding frames and hardware from impact damage without the need for an external floor or wall stop. Its cast aluminum body utilizes all-weather fluid and a non-sized adjustable spring (Size 1–5), making it versatile enough for interior doors up to 4’6” and exterior doors up to 3’6” while remaining ADA compliant at the lowest setting. Designed specifically for push-side parallel arm mounting with a common 3/4” x 9 1/16” footprint, the 1261-CUSH is a non-handed, UL-listed, and BAA-qualified choice for schools, hospitals, and government buildings requiring reliable, long-term performance.

Features:

• Standard 1260 series closer shipped with Cush-N-Stop Arm, a shaft cover, and self reaming and tapping screws.
• Non-sized (1-5) cylinder is adjustable for interior doors up to 4’6” in width and exterior doors to 3’6” in width
• Meets ADA requirements when adjusted to Size 1
• Designed for push side parallel arm mounting only
• Mounts to most common commercial footprint (3/4” x 9 1/16”)


Cush-N-Stop Arm (CUSH)

The Cush-N-Stop arm is used on push side parallel arm installations to control the door’s opening by cushioning the swing and providing a built-in stop at 110 degrees to prevent damage to walls and hardware.

• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe
