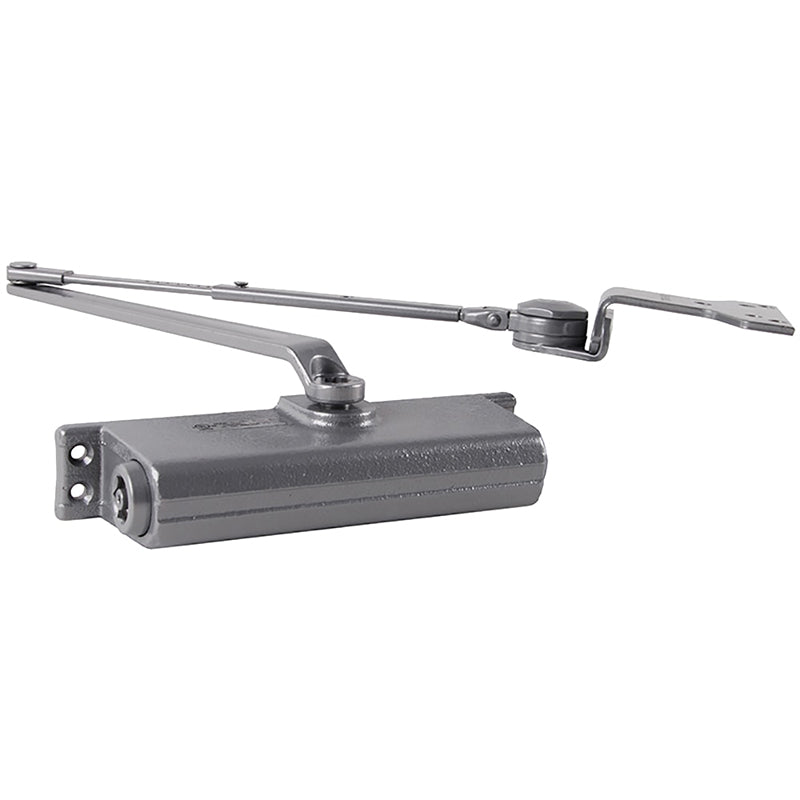

LCN 1261 HW/PA Hold Open Arm with Parallel Arm Shoe Door Closer
The LCN 1261 Door Closer HW/PA Hold Open PA Shoe, Surface Mounted Commercial Light To Medium Door Closer. Tested and certified under ANSI Standard A156.4, grade one, The LCN 1261 Features a Cast Iron n All weather fluid, This Door Closer Is Non-handed, The spring power of a 1261 cylinder is field adjustable from size 1 through size 5 and is shipped adjusted to size 3. See Manufactures Specifications For Additional Information. See Manufactures Specifications For Additional Information And Product Options. Aluminum/689 Finish, Brass 696 Finish, Light Bronze 691 Finish, Dark Bronze 695 Finish
1260 Series Surface Mounted Closers
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron closer with dual mounting capabilities. 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4'6" and exterior doors to 3'6"
- Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional SlimLine cover
