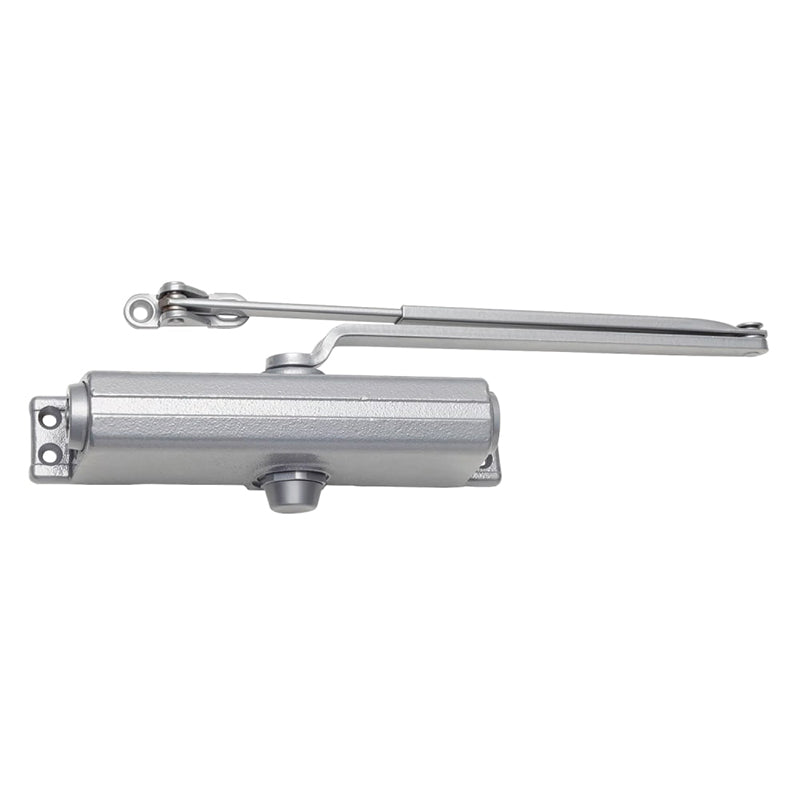

LCN 1261 RW/PA - Regular Arm with Parallel Arm Shoe Door Closer
The LCN 1261 Door Closer RW//PA - Regular Arm with Parallel Arm Shoe Is a Light To Medium Commercial Door Closer. Packaged For Regular And PA Mounting. The spring power of a 1261 cylinder is field adjustable from size 1 through size 5 and is shipped adjusted to size 3. Features also include a Cast Iron Body and All-weather fluid, The 1261 Is a Non-handed Surface Mounted Door Closer. See Manufactures Specifications For Additional Product Information. 1261 Series is available in Aluminum/689 Finish, Brass 696 Finish, Light Bronze 691 Finish, Dark Bronze 695 Finish
1260 Series Surface Mounted Closers
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron closer with dual mounting capabilities. 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with a regular arm, a shaft cover, and self-reaming and tapping screws. See 1260 Series catalogue pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4'6" and exterior doors to 3'6"
- Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
- Closer meets ADA requirements. See 1260 Series catalogue page 10
- Optional Quick Fix bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional SlimLine cover
