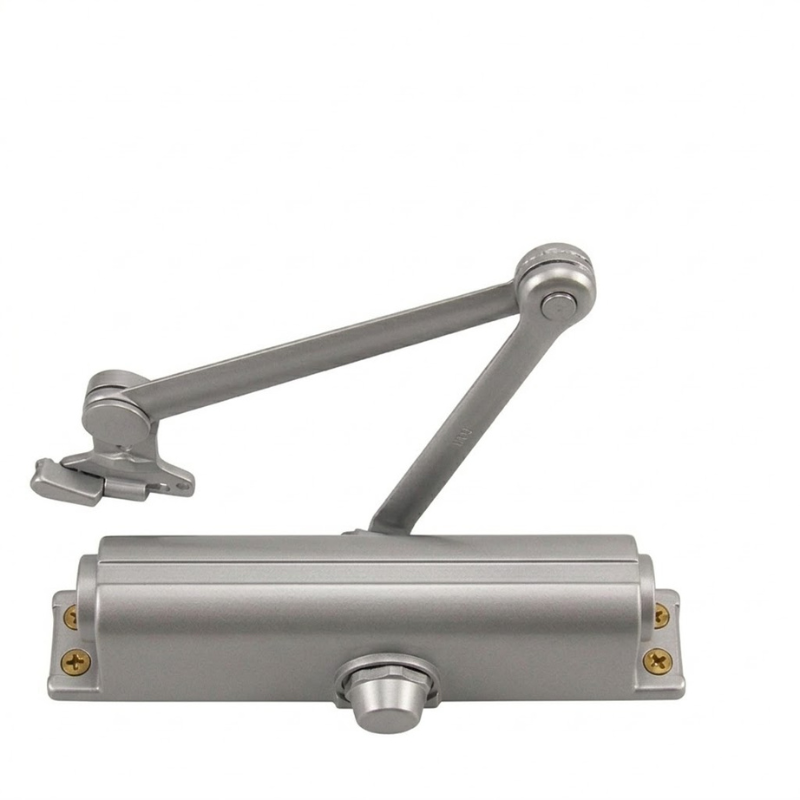

LCN 1261-SCUSH Surface Door Closer, Spring Cush-N-Stop Arm, Push Side Parallel Arm Mount, 110 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Grade 1, Non Handed

The LCN 1261-SCUSH Surface Door Closer is a heavy-duty, Grade 1 commercial door closer designed for high-traffic and high-abuse environments requiring controlled door opening with added impact protection. Featuring a Spring Cush-N-Stop arm (SCUSH), this closer incorporates a spring-loaded cushioned stop that absorbs opening force and helps protect doors, frames, and surrounding walls from damage. Designed for push side parallel arm mounting, the 1261-SCUSH supports up to 110° door swing and includes a non-sized adjustable spring (Size 1–5) for flexible use on interior doors up to 4’6” and exterior doors up to 3’6”. Built with a durable cast aluminum body and all-weather hydraulic fluid, it ensures reliable performance in extreme conditions while meeting ANSI/BHMA A156.4 Grade 1 and UL10C fire safety standards, making it ideal for schools, hospitals, and other demanding commercial applications.

Features:

• Standard 1260 series closer shipped with a Spring Cush-N-Stop arm, a shaft cover, and self reaming and tapping screws.
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Meets ADA requirements when adjusted to Size 1
• Designed for Parallel Arm (Push Side) mounting on either right or left swinging doors.
• Mounts to most common commercial footprint (3/4” x 9 1/16”)


Spring Cush-N-Stop Arm (SCUSH)

This spring Cush-N-Stop arm is used on push side parallel arm applications to provide a cushioned opening with a built-in spring-loaded stop that absorbs impact and helps protect doors, frames, and walls in high-abuse environments.

• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
