Description

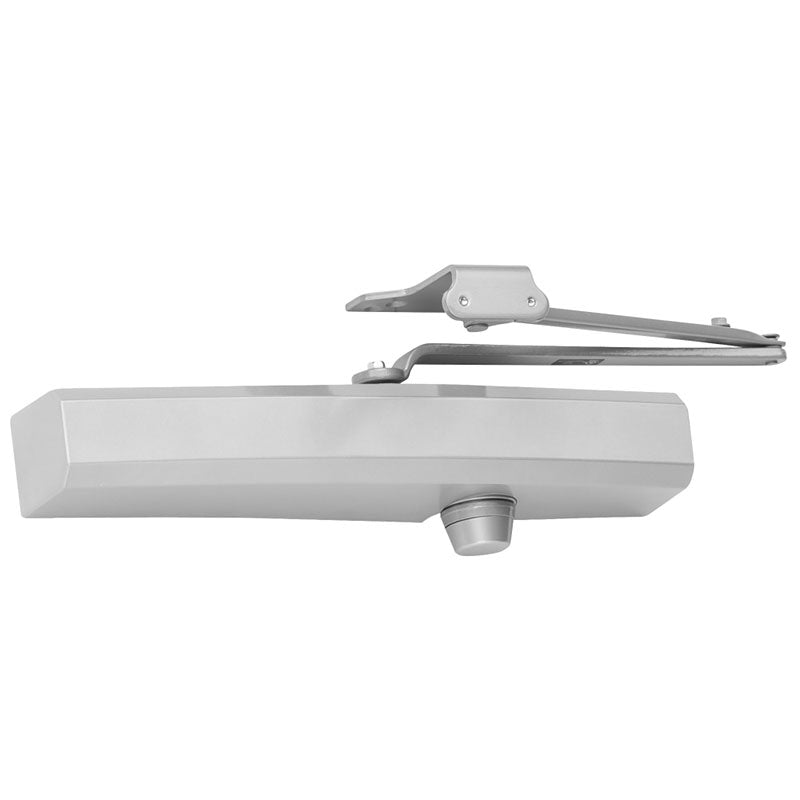

LCN 1450-RW/PA-689-SLIMPC Surface Mount Closer, Size 1-6 Adjustable, Double Lever Arm with Parallel Bracket, Non-Handed, Slim Plastic Cover, Grade 1, Aluminum Painted Finish
LCN 1450-RW/PA-689-SLIMPC Surface Mount Closer combines precision engineering with versatile adjustability for demanding applications. Six closing force settings allow fine-tuning to match specific door weights and traffic patterns. Dual lever arm mechanics with parallel bracket mounting deliver consistent, controlled performance on both left and right swing doors. The non-handed universal design works seamlessly across multiple installations without requiring separate models. Slim plastic cover maintains a professional appearance while protecting internal mechanisms from environmental exposure. Grade 1 construction ensures superior reliability and longevity. Painted aluminum finish provides excellent corrosion resistance, making it an excellent choice for offices, healthcare facilities, schools, and other high-traffic commercial environments requiring dependable door control.
1450 Series Surface Mounted Closers
The 1450 Series is a cast aluminum closer for frequent use and low abusive applications.
The 1450 Series also looks as good as it functions, with a standard slim line cover, optional full plastic cover or optional full metal cover, in six available standard finishes, as well as custom colors.
- Cast Aluminum Body
- Patent Pending Design
- Peel-n-Stick Templates
- Universal Screw Pack
- Full Complement Bearing
- All Weather Fluid
- Adjustable Spring Size 1-6
- Non-Handed
- 25 Year Warranty
Product Specs
| Manufacturer | LCN |
| SKU | 1450-RW/PA-689-SPC |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Varies |
| UL Listing Type | 10C |
| ANSI Number | A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 25 Years |
| ADA Compliance | Yes |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Arm Type | Double Lever Arm with PA Bracket |
| Hand | Non-Handed |
| Degree Swing | 180 Deg. |
| Back Check | Adjustable |
| Cover | Slim Plastic |
| Screw Type | Machine and Self Tapping |
| Through Bolts | Yes |
| Door Size | Ext to 48 In., Int to 60 In. |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
