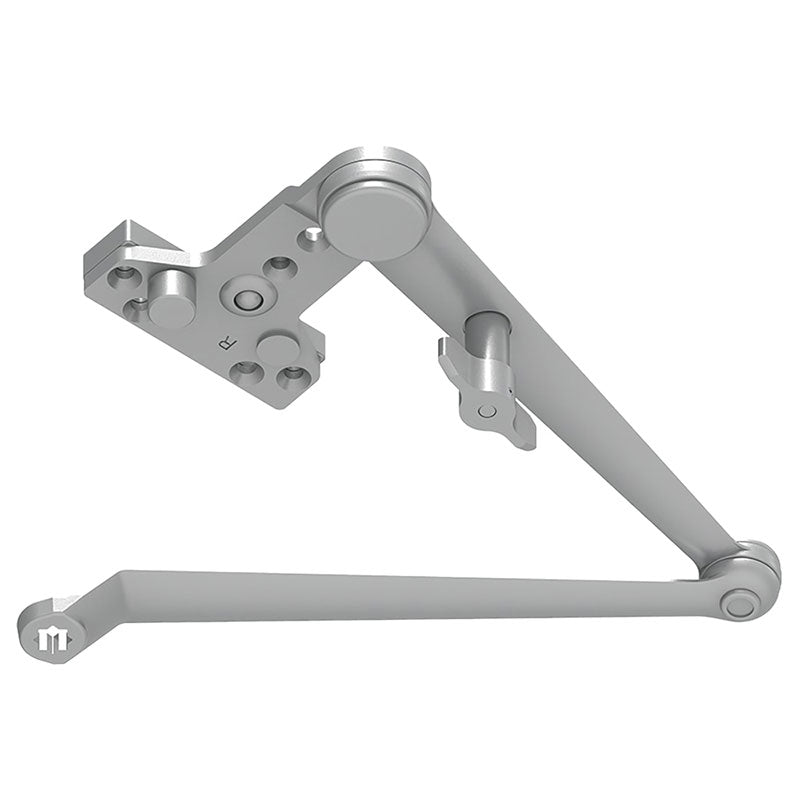

The LCN 1460-3049CNS Hold Open Cush Arm is for use with Sargent 1460 Series Surface Mounted Closers, and comes Non-Handed.

1460 Series Surface Mounted Closers

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

• Standard 1460 series closer shipped with regular arm, a slimline plastic cover, and self-reaming and tapping screws
• Multiple cover options include; Standard (Slimline), Full, and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5 and exterior doors to 4
• Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. The optional plated finish on the Designer Series metal cover, arm, and fasteners
• Optional SRI primer for installations in corrosive conditions

Features:

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high-strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing, and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• A cush-N-Stop ® function has a built-in stop incorporated into the arm to prevent damage to the closer, door, or frame in the event
