Description

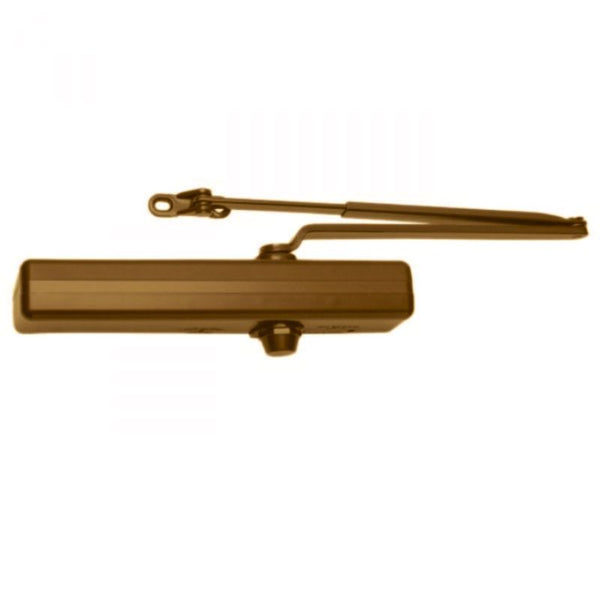

LCN 1461 Rw/PA Door Closer Regular Arm with Parallel Arm Shoe
Designed for maximum versatility, the 1460 Door Closers, available with multiple cover options, can be used for commercial and institutional applications. This fully universal Door closer offers various options and new fast and accurate installation. The spring power of an LCN 1461 Door Closer cylinder is field adjustable from size 1 through size 6 and is shipped adjusted to size 3. Brass 696, Aluminum 689, Dark Bronze 695, Light Bronze 691, and Statuary Bronze 690 finishes are available.
Features:
- Standard 1460 series closer shipped with regular arm, a slimline plastic cover, and self-reaming and tapping screws
- Multiple cover options include; Standard (Slimline), Smooth Slimline (EC), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
- Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
Specifications
Materials: | High-strength cast iron cylinder One-piece forged steel piston Heat-treated pinion All-weather fluid eliminates seasonal adjustments High efficiency, full complement, low friction bearings Tamper-resistant regulating screws Full rack and pinion hydraulic action Quiet, low friction track and roller combination for all single lever arm closers |
Mounting types: | Hinge (Pull) Side Top Jamb (Push) Parallel Arm |
Cover: | Plastic Designer Series |
Cylinder: | Non-Handed Accessibility Non-Sized Delayed Action |
Arm Functions: | Regular Arm and Parallel Shoe |
Finishes: | Powder Coat Plated |
Warranty: | 10-year limited warranty |
Manufacturer: | LCN |
Certifications
ADA: | ADA Compliant |
ANSI: | A156.4 Grade 1 |
UL: | UBC 7.2 (1997) and UL 10 C Compliant |
Product Specs
Manufacturer | LCN |
SKU | 1461-RW/PA 689 |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
Base Material | VARIES |
BAA Qualified | Yes |
UPC Code | 43156589449 |
Limited Warranty | 30 Years |
Finish | 689/US28 |
Finish Description | Aluminum Painted |
Finish Family | Matte Silver |
Technical Specs
Type | Surface |
Technology | Hydraulic |
Mounting Location | Push or Pull the Side |
Mounting Style | Tri Mount |
Hold Open | Yes |
Degree Hold Open | 180 Deg. |
Hand | Non-Handed |
Degree Swing | 180 Deg. |
Cover | Slim Plastic |
Cold Weather Fluid | Yes |
Product Type | Surface Closers |
