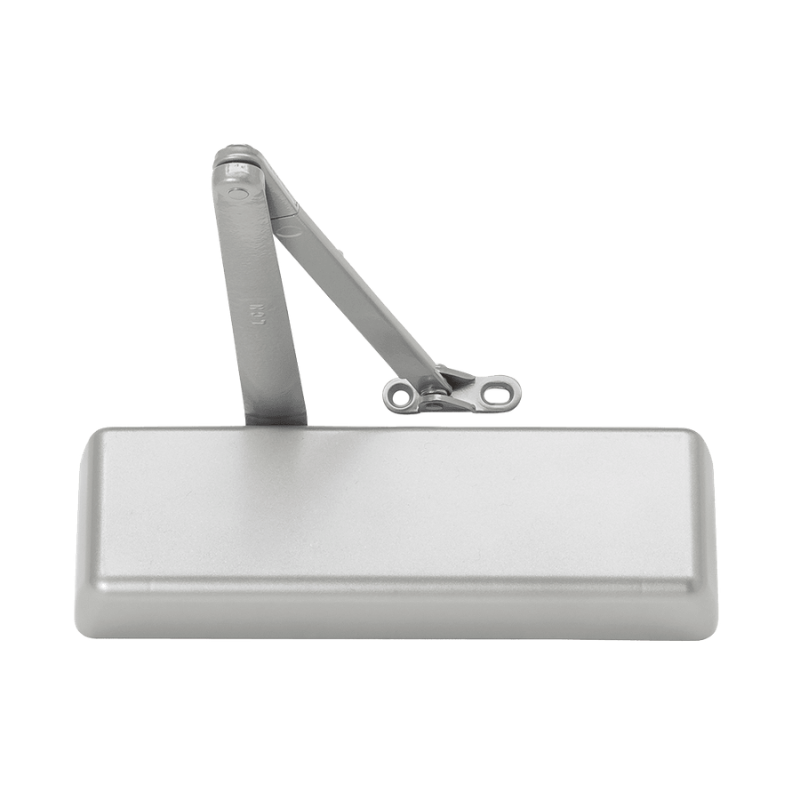

LCN 4011-REG-689-MC Regular Arm Surface Door Closer, Metal Cover, Pull Side Mounted, 140 Deg Swing, Metal Cover, Aluminum

The LCN 4011-REG-689-MC Regular Arm Surface Door Closer is a heavy-duty closer built for pull side mounted applications where reliable control and long service life matter. This closer combines the 4011 closer body with a regular arm configuration, a metal cover, and aluminum finish for a clean, durable installation. Designed for surface mounting, it provides controlled door closing with up to 140 degree swing in the regular arm setup. The LCN 4011-REG-689-MC is part of the respected 4010 Series and is engineered for demanding commercial openings that require consistent performance and proven durability.

Features

• LCN 4011 closer is a surface-mounted heavy-duty door closer in the 4010 Series.
• Regular arm configuration is designed for pull side mounted installation.
• Metal cover is included for a more protected and finished appearance.
• Aluminum finish provides a clean look suited to commercial door applications.
• Regular arm mounting allows up to 140 degree swing.
• The 4011 is designed for interior or exterior doors in high-traffic commercial use.

Functional Details

The LCN 4011 is a surface closer intended for pull side mounting with a regular arm. In this configuration, the closer body mounts on the door and the arm mounts to the frame, providing efficient closing control for standard commercial openings. The 4011 is part of a cast iron closer series known for durability and adjustable operation.

• Forged steel main arm and forearm
• All weather fluid
• Peel-n-stick templates
• Non-handed
• Sized cylinders for interior, exterior and barrier-free openings

Arm Type Details

The regular arm is the standard pull side arm configuration for this closer. It mounts on the pull side of the door and frame and is commonly used where maximum closing power and straightforward installation are preferred. For the 4011 regular arm arrangement shown in the cut sheet, the door and frame preparation supports up to 140 degrees of opening, depending on surrounding conditions.

Included Components

This product includes the LCN 4011 closer body, regular arm, and metal cover. The cut sheet also indicates peel-n-stick templates for installation.
