Description

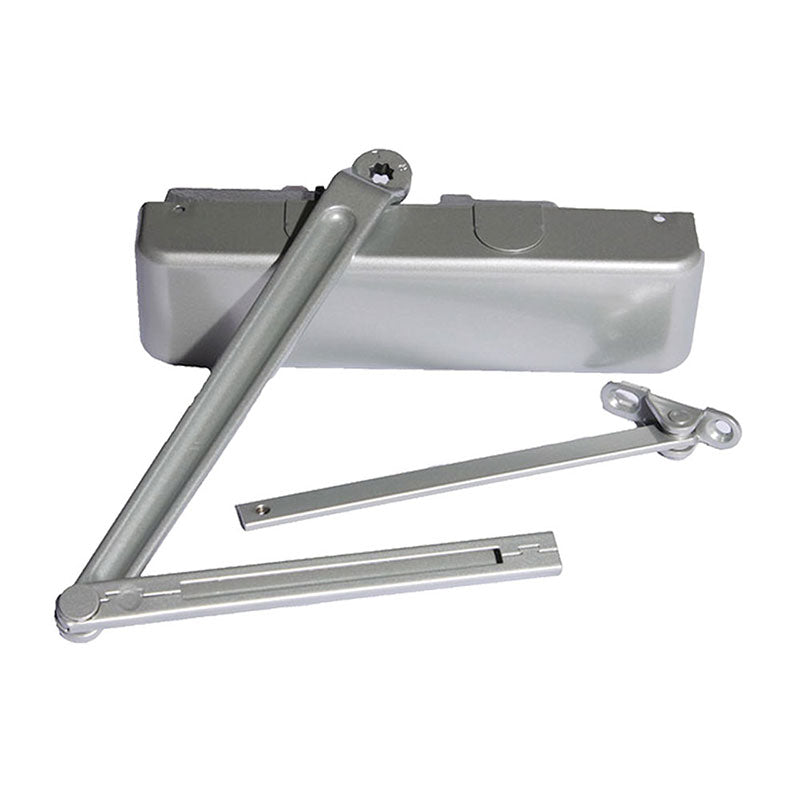

The LCN 4031 RW/PA 689 is a Surface Mounted Door Closer made of Cast Iron, comes with Tri-Mounting, can be used on either Push or Pull Side, and comes in Powder Coated Aluminum finish.
4030 Series Surface Mounted Closers
The LCN 4030 Series is a cast iron universal closer that has a forged steel main arm.
The LCN 4030 Series is designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.
- Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. See the Options tab for more information.
- Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
- Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
- Tested and certified under ANSI Standard A156.4, grade one
Product Specs
| Manufacturer | LCN |
| SKU | 4031-RW/PA 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | VARIES |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Hand | Non-Handed |
| Degree Swing | 180 Deg. |
| Cover | Full Metal |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
