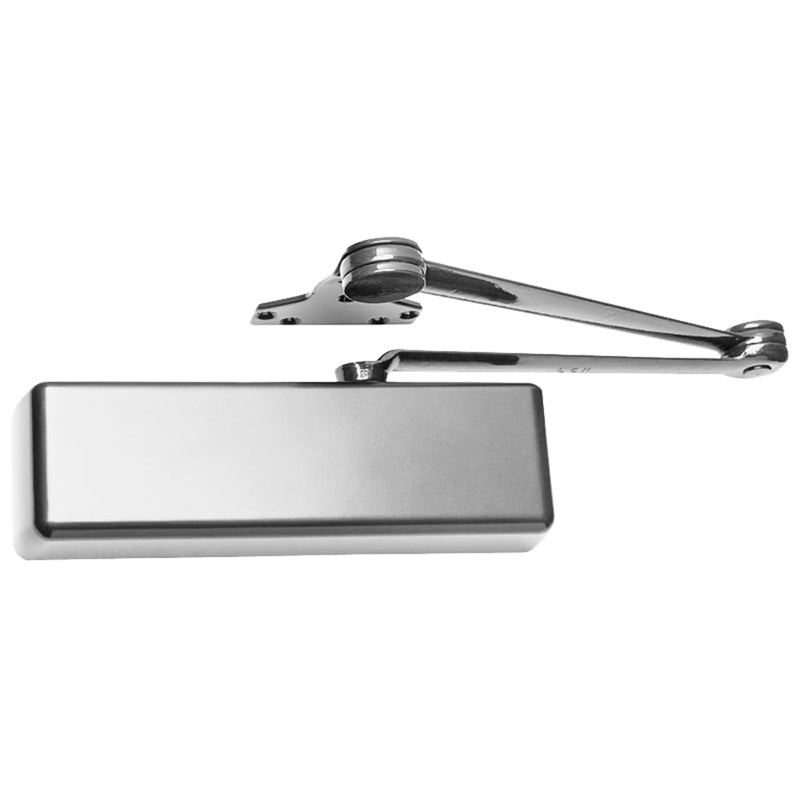

The 4040XP is LCN's most durable and flexible heavy-duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets a new standard for reliability, longevity, and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that's stronger, smarter, and delivers remarkable value in a variety of applications.

The patented green dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers and closers that won't let you down no matter how many people go through the door or how hard they kick, push or slam against it.

• Cast iron cylinder with full-complement bearing
• 3/4" diameter piston
• Double-heat>

  Features

  Certifications	Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
  Body Construction	Cast Iron Body; Full Complement Bearings; 1-1/2" Diameter Piston; 3/4" Diameter Double Heat Treated; Pinion Journal
  Fluid	All-Weather Liquid X Fluid
  Handing	Non-Handed
  Templating	Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern
  Size	Adjustable Spring Size 1-6, includes Patented Green Dial
  Warranty	30 years
  Cover	Plastic, Standard; Metal, Optional
  Fasteners	Self Reaming and Tapping Screws (SRT)
  Mounting	Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
  Arms	Regular Arm
  Finishes/Colors/ Powder Coat	Aluminum (689); Statuary Bronze (690); Light Bronze (691); Black (693); Dark Bronze (695); Brass (696); Custom colors optional; Optional SRI primer - powder coat only n Optional plated finishes

  Mounting Details - Parallel Arm (Push Side) Mounting

  Butt Hinges	Should not exceed 5" (127 mm) in width
  Auxiliary Stop	Recommended at a hold-open point or where a door cannot swing beyond 120 °
  Top Rail	Requires 1-1/4" (32 mm) minimum 2-1/4" (57 mm) minimum with closers on PLATE, 4040XP-18TJ 3" (76 mm) minimum with the closer on PLATE, 4040XP-18G
  Head Frame	Less than 3-1/2" (89 mm) requires PLATE, 4040XP-18TJ; With the flush ceiling, use PLATE, 4040XP-18G. Either plate requires 1-3/4" (44 mm) minimum
  Maximum Opening	Templating allows up to 120 °; hold-open points 85 ° up to 120 ° with hold-open arm.
  Delayed Action	Incorporates standard 4041 cylinders, without XP cylinder; Delays closing from 120 ° to 70 °; Delay time adjustable up to approximately 1 minute

  Mounting Details - EDA and CUSH Mounting

  Clearance	4040XP-62EDA is 5-1/2" (140 mm) from door face. 6" (152 mm) for CUSH
  Head Frame	Flush or rabetted requires CUSH FLUSH PANEL ADAPTER, 4040XP-419
  CUSH ARM	Requires SHOE SUPPORT, 4040XP-30 for fifth screw anchorage where the reveal is less than 3-1/16 Ì‹ (78 mm)
  Delayed Action	Incorporates standard 4041 cylinders, without XP cylinder. Delays closing from maximum opening to 115 ° with 180 ° template, 95 ° with 110 ° template, 85 ° with 100 ° template, 75 ° with 90 ° Template. Delay time adjustable up to approximately 1 minute.
