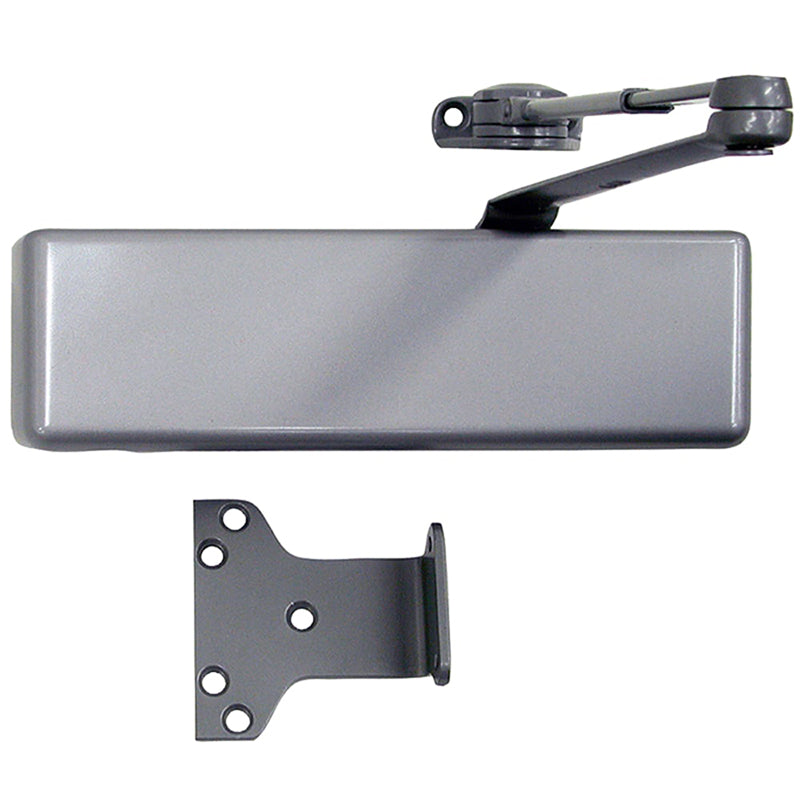

The LCN 4040XP-HW/PA-TBSRT Super Smoothee Heavy Duty Closer comes equipped with a Hold Open Arm and Parallel Arm Shoe, providing added stability and ease of use.
Finish Options: Aluminum (689); Statuary Bronze (690); Light Bronze (691); Black (693); Dark Bronze (695); Brass (696)
TBSRT: Through Bolt Self Reaming and Tapping Screws
The 4040XP is LCN's most durable and flexible heavy-duty surface-mounted closer, designed for institutional and other demanding high-traffic applications. The 4040XP sets a new standard for reliability, longevity, and value with a beefier design and extraordinary performance testing far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that's stronger, and smarter and delivers remarkable value in various applications.
The patented green dial on the 4040XP makes spring adjustments fast, easy, and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance throughout every season. High-traffic doors call for heavy-duty closers and closers that won't let you down no matter how many people go through the door or how hard they kick, push or slam against it.
|
Certifications |
Grade 1 - ANSI A156.4, UL 10C, ADA, 100-Hour Salt Spray, Meets BAA - Buy American Act |
|
Body Construction |
Cast Iron Body; Full Complement Bearings; 1-1/2" Diameter Piston; 3/4" Diameter Double Heat Treated; Pinion Journal |
|
Fluid |
All-Weather Liquid X Fluid |
|
Handing |
Non-Handed |
|
Templating |
Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern |
|
Size |
Adjustable Spring Size 1-6, includes Patented Green Dial |
|
Warranty |
30 years |
|
Cover |
Plastic, Standard; Metal, Optional |
|
Fasteners |
Self Reaming and Tapping Screws (SRT) |
|
Mounting |
Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side) |
|
Arms |
Regular Arm |
|
|
|
|
Finishes/Colors/ Powder Coat |
Aluminum (689); Statuary Bronze (690); Light Bronze (691); Black (693); Dark Bronze (695); Brass (696); Custom colors optional; Optional SRI primer - powder coat only n Optional plated finishes |
|
Butt Hinges |
Should not exceed 5" (127 mm) in width |
|
Auxiliary Stop |
Recommended at a hold-open point or where a door cannot swing beyond 120 ° |
|
Top Rail |
Requires 1-1/4" (32 mm) minimum 2-1/4" (57 mm) minimum with the closer on PLATE, 4040XP-18TJ 3" (76 mm) minimum with the closer on PLATE, 4040XP-18G |
|
Head Frame |
Less than 3-1/2" (89 mm) requires PLATE, 4040XP-18TJ; With the flush ceiling, use PLATE, 4040XP-18G. Either plate requires 1-3/4" (44 mm) minimum |
|
Maximum Opening |
Templating allows up to 120 °; hold-open points 85 ° up to 120 ° with hold-open arm. |
|
Delayed Action |
Incorporates standard 4041 cylinders, without XP cylinder; Delays closing from 120 ° to 70 °; Delay time adjustable up to approximately 1 minute |
|
Clearance |
4040XP-62EDA is 5-1/2" (140 mm) from the door face. 6" (152 mm) for CUSH |
|
Head Frame |
Flush or rabetted requires CUSH FLUSH PANEL ADAPTER, 4040XP-419 |
|
CUSH ARM |
Requires SHOE SUPPORT, 4040XP-30 for fifth screw anchorage where the reveal is less than 3-1/16 Ì‹ (78 mm) |
|
Delayed Action |
Incorporates standard 4041 cylinders, without XP cylinder. Delays closing from maximum opening to 115 ° with 180 ° template, 95 ° with 110 ° template, 85 ° with 100 ° template, 75 ° with 90 ° template. Delay time adjustable up to approximately 1 minute. |
|
Manufacturer |
LCN |
|
SKU |
4040XP-Hw/PA |
|
Grade |
Grade 1 |
|
Installation |
Commercial |
|
Origin |
USA |
|
Unit of Measure |
Each |
|
Application |
Hold Open Arm |
|
Base Material |
Varies |
|
UL Listing Type |
UL 10C |
|
ANSI Number |
A156.4 |
|
BAA Qualified |
Yes |
|
Limited Warranty |
30 Years |
|
Fire Rated |
3 Hours {A} |
|
ADA Compliance |
Yes |
|
Type |
Surface |
|
Technology |
Hydraulic |
|
Mounting Location |
Push or Pull Side |
|
Mounting Style |
Tri Mount |
|
Hold Open |
Yes |
|
Hold Open Type |
Friction |
|
Degree Hold Open |
Adjustable |
|
Closer Size |
1 to 6 |
|
Arm Type |
Regular Hold Open Arm |
|
Hand |
Non-Handed |
|
Degree Swing |
120 Deg. |
|
Back Check |
Adjustable |
|
Delay |
No |
|
Cover |
Plastic |
|
Screw Type |
Self Tapping |
|
Through Bolts |
No |
|
Cold Weather Fluid |
Yes |
|
Product Type |
Surface Closers |
