LCN 4040XP-RW/PA-TBSRT Super Smoothee Heavy Duty Closer

  • SKU: 4040XPRWPA689TBSRT

LCN 4040XP-RW/PA-TBSRT Super Smoothee Heavy Duty Closer

  • SKU: 4040XPRWPA689TBSRT
Sale price$607.00/ea
In Stock
In Stock
Finish: AL-689 Aluminum

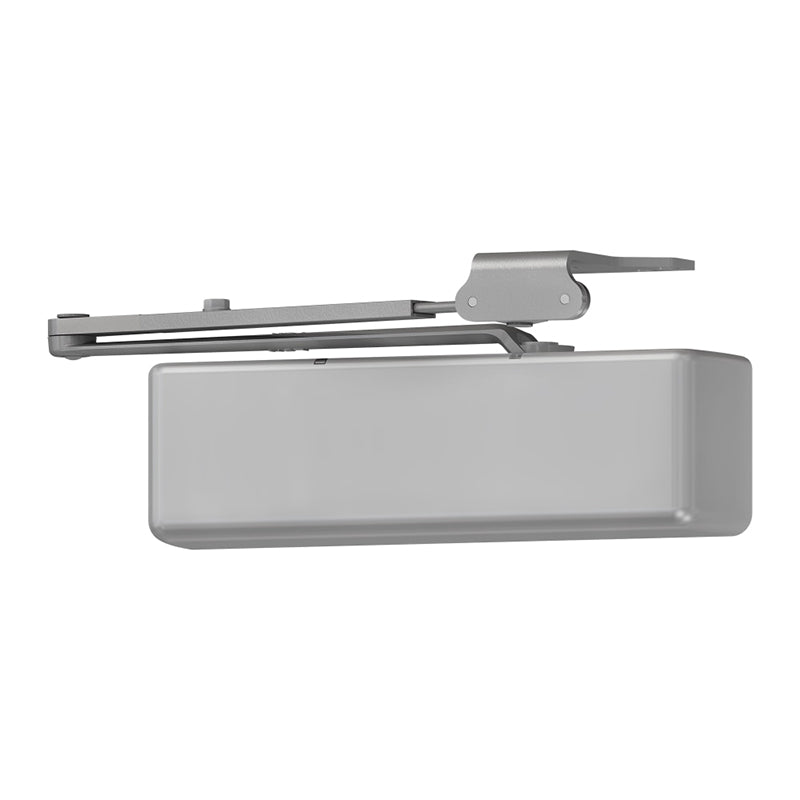

LCN 4040XP-RW/PA-TBSRT Super Smoothee Heavy Duty Closer - Regular Arm with Parallel Arm Shoe

The LCN 4040XP-RW/PA-TBSRT door closer features a heavy duty design and comes equipped with a regular arm and parallel arm shoe for a smooth and secure closing.

TBSRT: Through Bolt Self Reaming and Tapping Screws

4040XP Series Surface Mounted Closers

The 4040XP is LCN's toughest rear-mounted closure, ideal for high-traffic environments. It sets new standards for reliability, longevity, and value, featuring a robust design and superior performance testing. Designed inside out with strong construction and proven LCN technology, it offers intelligent and durable solutions across various applications. The patented green dial allows quick, foolproof spring adjustments, while all-weather waterproofing ensures low maintenance and consistent operation for heavy-traffic doors, guaranteeing reliability despite constant use.
  • Cast iron cylinder with full-complement bearing
  • 3/4" diameter piston
  • Double-heat treated steel pinion journal
  • All-weather Liquid X fluid
  • LCN Patented Green Dial spring force indicator
  • 30-year warranty
  • Universal non-handed
  • Peel-n-stick template and snap-on cover
  • Adjustable spring sizes 1-6

Features

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction Cast Iron Body; Full Complement Bearings; 1-1/2" Diameter Piston; 3/4" Diameter Double Heat Treated; Pinion Journal
Fluid All-Weather Liquid X Fluid
Handing Non-Handed
Templating Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern
Size Adjustable Spring Size 1-6, includes Patented Green Dial
Warranty 30 years
Cover Plastic, Standard; Metal, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Mounting Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Arms Regular Arm
Finishes/Colors/ Powder Coat Aluminum (689); Statuary Bronze (690); Light Bronze (691); Black (693); Dark Bronze (695); Brass (696); Custom colors optional; Optional SRI primer - powder coat only n Optional plated finishes
Manufacturer LCN
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Regular Arm
Base Material Varies
UL Listing Type UL 10C
ANSI Number A156.4
BAA Qualified Yes
Limited Warranty 30 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Type Surface
Technology Hydraulic
Mounting Location Push or Pull Side
Mounting Style Tri Mount
Hold Open No
Closer Size 1 to 6
Arm Type Regular Arm
Hand Non-Handed
Degree Swing 120 Deg.
Back Check Adjustable
Delay No
Cover Plastic
Screw Type Self Tapping
Through Bolts No
Cold Weather Fluid Yes
Product Type Surface Closers
