Description

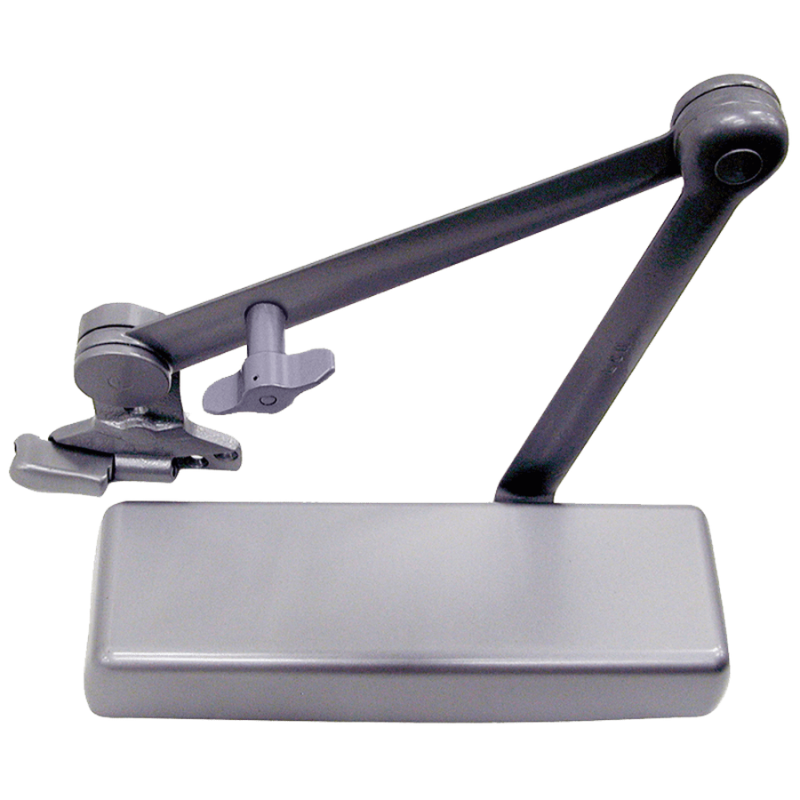

LCN 4040XP-SHCUSH-689-MC-TBSRT Surface Door Closer, Spring Hold Open Cush-N-Stop Arm, Features Forged, Solid Steel Main and Forearm, with Spring Loaded Stop, Metal Cover, Grade 1, Aluminum Painted Finish
The LCN 4040XP-SHCUSH-689-MC-TBSRT Surface Door Closer is a heavy-duty Grade 1 closer built for demanding commercial openings. This model includes a Spring Hold Open Cush-N-Stop Arm that features forged, solid steel main and forearm construction with a spring loaded stop for controlled door movement and hold-open convenience. Supplied with a metal cover, this closer combines durability with a clean finished appearance. The 4040XP series is designed for high-traffic applications and offers the reliable performance expected from an LCN surface-mounted closer, while the 689 aluminum painted finish provides a practical, professional look.
Features
- Surface door closer designed for commercial applications requiring durable, consistent closing control.
- Spring Hold Open Cush-N-Stop arm provides hold-open capability with cushioned stopping action.
- Arm features forged, solid steel main and forearm construction for added strength and long service life.
- Integrated spring loaded stop helps absorb shock during door opening.
- Metal cover is included for a more finished appearance and added protection.
- Grade 1 construction meets heavy-duty performance requirements.
- 689 aluminum painted finish offers a clean, neutral look suited to a wide range of openings.
Functional Details
The Spring Hold Open Cush-N-Stop Arm is designed to hold the door in an open position while also helping control the door near the end of the opening cycle. Its spring loaded stop adds cushioning to reduce stress on the door, frame, and hardware when the door is opened with force.
- Non-handed
- Forged, solid steel main arm and forearm
- Spring-loaded stop in soffit shoe
- Hold-open adjustable at the shoe
Arm Type Details
This Cush-N-Stop arm configuration combines hold-open functionality with a built-in stop mechanism. The forged, solid steel main arm and forearm provide strength for high-use openings, while the spring-loaded stop in the soffit shoe helps soften the impact at the end of the door swing.
Included Components
This closer package includes the LCN 4040XP series surface-mounted door closer body, Spring Hold Open Cush-N-Stop arm, and metal cover.
Product Specifications
| Manufacturer | LCN |
|---|---|
| Series | 4040XP Series |
| SKU | 4040XP-SHCUSH-MC-TBSRT |
| Product Type | Surface Door Closer |
| Arm Type | Spring Hold Open Cush-N-Stop Arm |
| Arm Construction | Forged, solid steel main arm and forearm |
| Stop Type | Spring loaded stop |
| Cover | Metal Cover |
| Grade | ANSI A156.4 Grade 1 |
| ANSI Number | A156.4 |
| Finish | 689 Aluminum Painted |
| Handing | Non-handed |
| Mounting | Surface mounted |
| Unit of Measure | Each |
| UL Listing Type | UL listed for self-closing doors without hold-open |
| Limited Warranty | 30 years |
| Origin | USA |
Technical Specifications
| Closer Body | Cast iron |
|---|---|
| Spring Size | Adjustable 1-6 |
| Door Width Interior | To 5'0" |
| Door Width Exterior | To 4'0" |
| Mounting Type | Regular mount, top jamb mount, parallel arm mount |
| Handing | Non-handed |
| Arm Material | Forged, solid steel main arm and forearm |
| Hold Open Adjustment | Adjustable at the shoe |
| Stop Location | Spring-loaded stop in soffit shoe |
| Hydraulic Fluid | All-weather fluid |
| Fasteners | Self reaming and tapping screws, machine screws, wood and machine screws |
| Compliance | ANSI A156.4 Grade 1 |
| UL Use Limitation | Hold-open arms not permitted on fire door assemblies |
| Cover Type | Metal cover |
| Function | Spring Hold Open Cush-N-Stop |
