Description

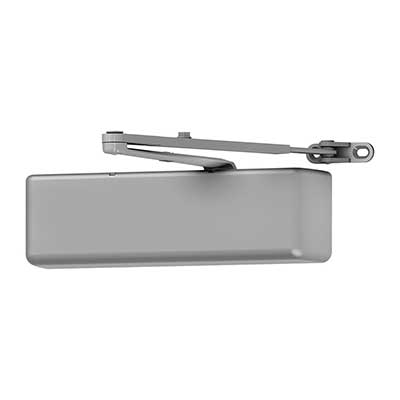

LCN 4040XP-XLONG-TBSRT Surface Door Closer, Extra Long Arm, Push Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Grade 1, Non-Handed
The LCN 4040XP-XLONG-TBSRT Surface Door Closer features an extra long arm, 120 degree swing, and an adjustable size from 1 to 6. It also includes a plastic cover and is grade 1 and non-handed, making it a versatile and durable choice for any mounting situation.
TBSRT: Through Bolt Self Reaming and Tapping Screws
4040XP Series Surface Mounted Closers
The 4040XP is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
The patented green dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won't let you down no matter how many people go through the door or how hard they kick, push or slam against it.
- Cast iron cylinder with full-complement bearing
- 3/4" diameter piston
- Double-heat treated steel pinion journal
- All-weather Liquid X fluid
- LCN patented Green Dial spring force indicator
- 30-year warranty
- Universal non-handed
- Peel-n-stick template and snap-on cover
- Adjustable spring sizes 1-6
Product Specs
| Vendor | Allegion |
| Manufacturer | LCN |
| SKU | 4040XP-XLONG |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Extra Long Arm |
| Base Material | Varies |
| UL Listing Type | UL 10C |
| ANSI Number | A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Fire Rated | 3 Hours |
| ADA Compliance | Yes |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Regular |
| Hold Open | No |
| Closer Size | 1 to 6 |
| Arm Type | Regular Arm |
| Hand | Non-Handed |
| Degree Swing | 120 Deg. |
| Back Check | Adjustable |
| Delay | No |
| Cover | Plastic |
| Screw Type | Self Tapping |
| Through Bolts | No |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
