Description

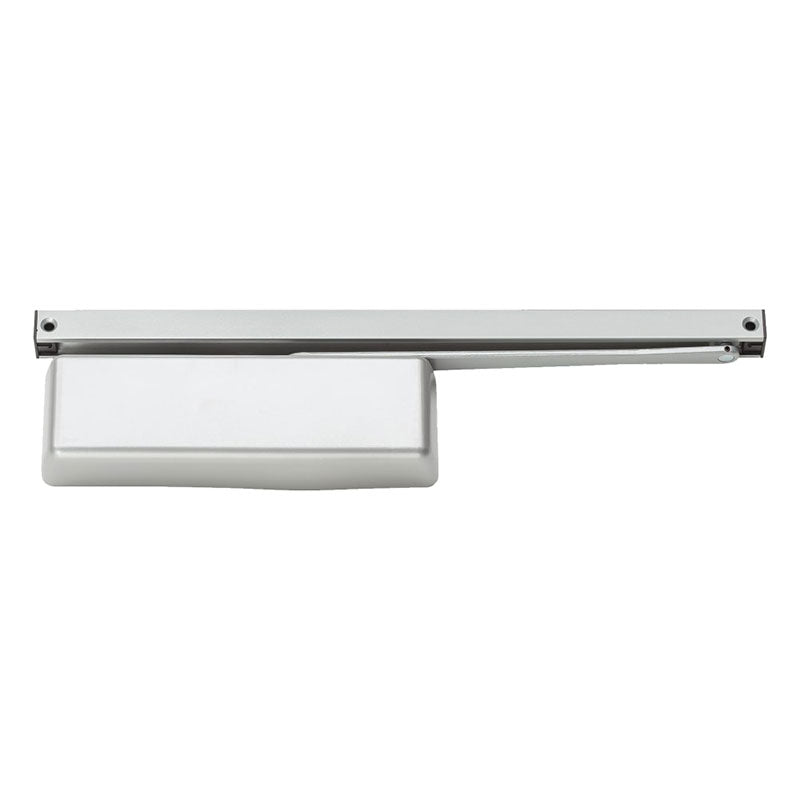

LCN 4040XPT-H-689-TBSRT Hold Open Track Arm Surface Closer, Push or Pull Side Mounting, 110 Degree Swing, Adjustable Size 1 to 4 (Set to 3), Grade 1, Non-Handed, Aluminum Painted
The LCN 4040XPT-H-689-TBSRT is a top-of-the-line surface closer with a hold open track arm and the ability to be mounted on either the push or pull side. With a 110-degree swing and adjustable size ranging from 1 to 4 (preset at 3), this grade 1 closer is suitable for all types of applications. It is non-handed and comes in a sleek aluminum finish, adding a touch of style to any door it is installed on.
TBSRT: Through Bolt Self Reaming and Tapping Screws
4040XP Series Surface Mounted Closers
The 4040XPT Series is the toughest closer out there that is strong, smart and reliable.
The 4040XPT is LCN’s most durable heavy-duty closer designed for the most demanding, high use and abuse applications. This series sets a new standard for reliability, longevity, and value with a beefier design and extraordinary performance,
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on the metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Product Specs
| Manufacturer | LCN |
| SKU | 4040XPT-H 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Hold Open Track Arm |
| Base Material | Varies |
| UL Listing Type | UL 10C |
| ANSI Number | A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | 689 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Slide Track |
| Hold Open | Yes |
| Hold Open Type | Friction |
| Degree Hold Open | Adjustable |
| Closer Size | 1 to 4 |
| Arm Type | Slide Track Arm Standard with Hold Open |
| Hand | Non-Handed |
| Degree Swing | 110 Deg. |
| Back Check | Adjustable |
| Delay | No |
| Cover | Plastic |
| Screw Type | Self Tapping |
| Through Bolts | No |
| Special Rust Inhibitor | No |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
