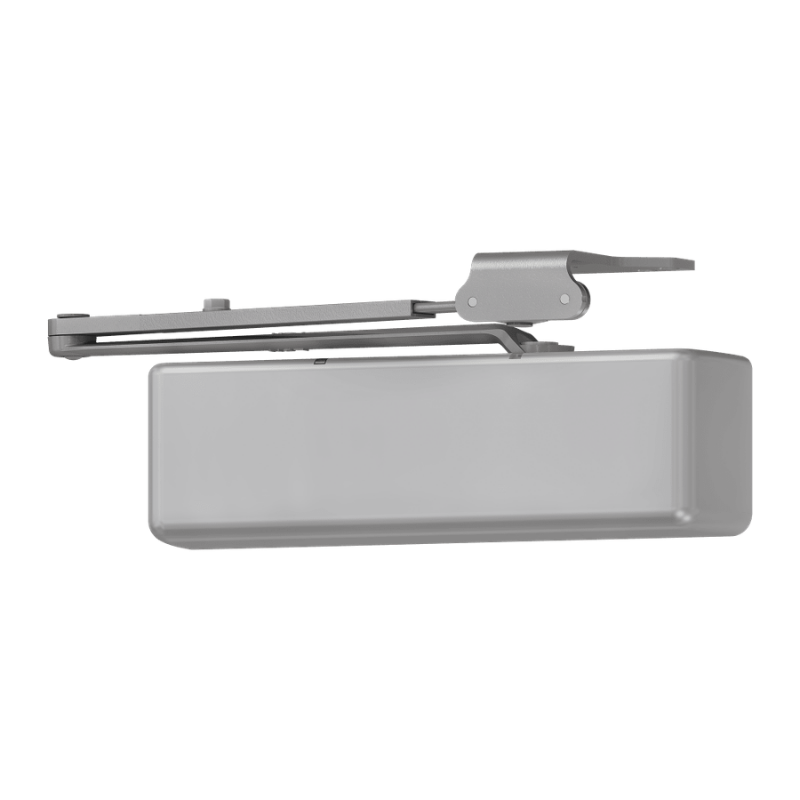

LCN 4041DEL-RW/PA Heavy Duty Surface Door Closer, Delayed Action, Regular Arm, PA Shoe, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Grade 1, Non Handed

The LCN 4041DEL-RW/PA is a heavy duty surface mounted door closer built for high-traffic commercial and institutional openings. Part of LCN's proven 4040/4041 Series, it features a cast iron body and delayed action hydraulic control, giving slower-moving traffic extra time to pass through before the door begins its final close. Supplied with a regular arm and parallel arm (PA) shoe, this closer offers flexible installation for push or pull side mounting on the door or frame. With an adjustable spring size range of 1 through 6 and a non-handed design, it accommodates a wide variety of door widths and interior or exterior applications. A durable plastic cover is included.

Features

• Heavy duty cast iron closer body engineered for demanding commercial use.
• Delayed action control slows the door in the opening cycle for easier passage.
• Adjustable spring size 1 through 6 to suit a broad range of door widths and weights.
• Regular arm with PA shoe supports push or pull side mounting.
• Handles a door swing up to 120 degrees.
• Non-handed design for use on left or right hand doors.
• Separate valves for adjusting closing and latching speeds.
• Includes a plastic cover for a finished appearance.

Functional Details

The delayed action feature extends the amount of time the door stays open in the wider opening range before it starts to close, which is especially useful for handicap access, healthcare, and high-traffic areas where people need additional time to clear the doorway.

• Incorporates standard 4041 cylinder

• Delays closing from 120° to 70°

• Delay time adjustable up to approximately 1 minute


Arm Type Details

This closer ships with a regular arm and a parallel arm (PA) shoe. The regular arm is the most efficient mounting configuration and mounts on the pull side of the door, while the included PA shoe allows for parallel arm installation on the push side when the arm should sit flush against the door for a lower-profile appearance.

Included Components

The 4041DEL-RW/PA includes the closer body, regular arm, PA shoe, plastic cover, and standard mounting hardware.
