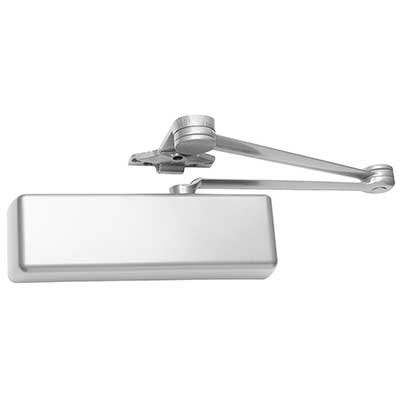

LCN 4111-CUSH Surface Door Closer with Cush-N-Stop Parallel Arm

  • SKU: 4111CUSH689LH
LCN 4111-CUSH RH 689
LCN 4111-CUSH RH 695
LCN 4111-CUSH RH 689
LCN 4111-CUSH RH 695
All LCN Products

LCN 4111-CUSH Surface Door Closer with Cush-N-Stop Parallel Arm

  • SKU: 4111CUSH689LH
$781.00/ea
In Stock
In Stock
Finish: 689 Aluminum
Handing: LH Left Hand
Handing Guide:
handing chart image

LCN 4111-CUSH Surface Door Closer with Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Grade 1

4110 Series Surface Mounted Closers

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.
  • Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
  • Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts parallel arm, specify right or left swinging door
  • 4111 cylinder meets ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • The 4110 Series is UL and cUL listed for self-closing doors without holdopen
  • Tested and certified under ANSI Standard A156.4, grade one


    Manufacturer LCN
    SKU 4111-CUSH
    Grade Grade 1
    Installation Commercial
    Unit of Measure Each
    UL Listing Type UL Listed
    ANSI Number A156.4
    BAA Qualified Yes
    Limited Warranty 30 Years



    Type Surface
    Technology Hydraulic
    Mounting Location Push Side
    Mounting Style Parallel Arm
    Hold Open No
    Closer Size 1 to 5
    Arm Type Cush Arm
    Hand Left-Handed or Right-Handed
    Degree Swing 110 Deg.
    Stop Dead Stop
    Back Check 75 Deg.
    Cover Full Plastic
    Reveal Size Less Than 2-3/4"
    Cold Weather Fluid Yes
    Product Type Surface Closers
    Product Cut Sheet
