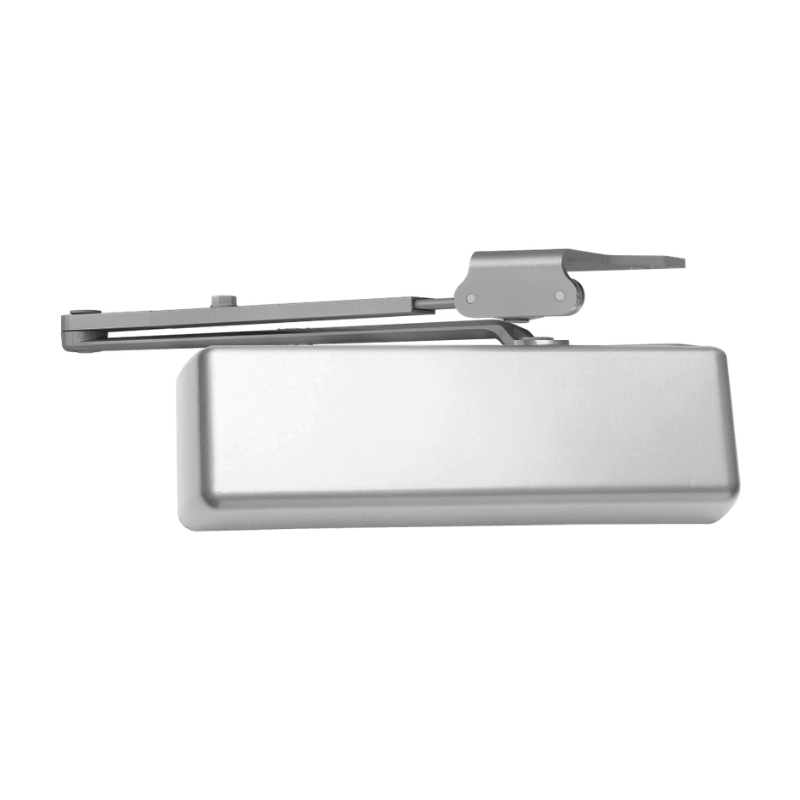

LCN 4111-RW/62A Heavy Duty Surface Closer, Regular Arm, Auxiliary Shoe, Adjustable Size 1-5

The LCN 4111-RW/62A is a heavy duty surface mounted door closer built for high-traffic commercial and institutional openings. Part of LCN's proven 4010/4110 Series, this closer features an adjustable spring size range of 1 through 5, letting installers fine-tune closing force to match door size and site conditions. It ships with a regular arm and a 62A auxiliary shoe for standard hinge (pull) side mounting where extra clearance or reinforcement is needed. The rugged cast iron body and separate adjustment valves for closing and latch speed deliver reliable, controlled door control that stands up to years of demanding daily use.

Features

• Heavy duty cast iron closer body designed for high-frequency commercial applications.
• Adjustable spring power sizes 1 through 5 for flexible door sizing.
• Regular arm configuration for standard hinge (pull) side mounting.
• 62A auxiliary shoe included for added mounting support and clearance.
• Independent adjustment valves control sweep and latch speed.


Arm Type Details

The regular arm is the most common LCN closer arm and mounts on the pull side of the door with the closer body attached to the door and the arm connected to the frame. It provides efficient, dependable closing control and is well suited to interior and exterior openings where the closer can be installed on the hinge side of the door. The 62A auxiliary shoe supports the arm connection and helps ensure a secure, stable installation.
