Description

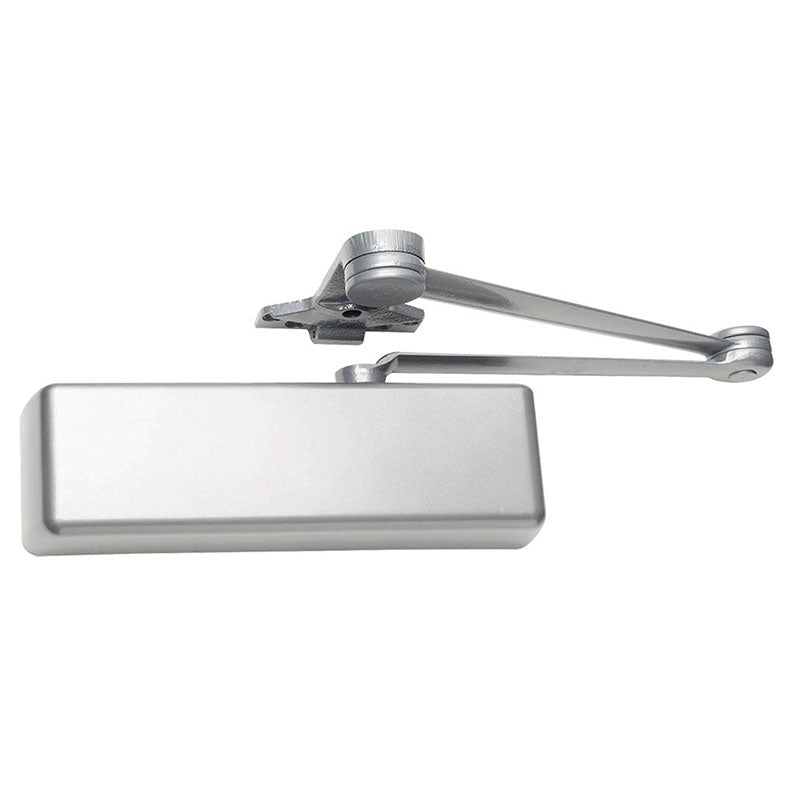

The LCN 4111-SCUSH 689 Surface Door Closer, has a Spring Cush-N-Stop Arm, has Push Side Parallel Arm Mounting, has a110 Degree Swing, Adjusts Size 1 to 5, has a Full Plastic Cover, is Handed, and comes in Aluminum Painted Finish.
4110 Series Surface Mounted Closers
The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.
- Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
- Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts parallel arm, specify right or left swinging door
- 4111 cylinder meets ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- The 4110 Series is UL and cUL listed for self-closing doors without holdopen
- Tested and certified under ANSI Standard A156.4, grade one
Product Specs
| Manufacturer | LCN |
| SKU | 4111-SCUSH 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Parallel Arm |
| Hold Open | No |
| Closer Size | 1 to 5 |
| Arm Type | Spring Cush Arm |
| Hand | Handed |
| Degree Swing | 110 Deg. |
| Stop | Spring Stop |
| Back Check | 75 Deg. |
| Cover | Full Plastic |
| Reveal Size | Less Than 2 3/4" |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
