Description

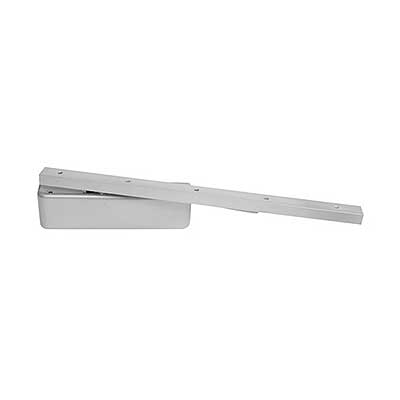

LCN 4511T-STD High-Security Track Arm Door Closer, Surface Mounted, Pull Side With Slide Track, High Security With Torx Screws, Swing Deg to 180, Cold Weather Fluid, Left Hand, 689 Aluminum
The LCN 4510T Series is a heavy-duty closer with a high-security track.
The 4510T Series has a forged steel single lever arm and heavy gauge metal security cover designed for correctional, vandal-prone, institutional, and other high-traffic interior applications.- Standard 4510T series closer shipped with standard arm, security track. (non-hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
- Sized cylinders for interior doors to 4’0”.
- Closer mounts hinge side, specify right or left swinging door.
- 4511T cylinder meets ADA requirements. See 4510T Series page 22.
- Standard or optional custom powder coat finish.
- Optional SRI primer for installations in corrosive conditions.
- The 4510T Series is UL-listed for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
- OMH Approved
Applications
- For any concealed or surface-mounted installation subject to potential abuse or vandalism
- For correctional, aluminum, hollow metal, or wood doors and frames
- Can be used with a hinge or pivot-mounted door
- Adapter plates and other installation accessories available for non-standard conditions
Positive Pressure
- LCN closers have been certified for three hours by UL to be in compliance with UL 10 C. Contact LCN for specific details on door closer fire ratings.
Product Specs
| Manufacturer | LCN |
| SKU | 4511T-STD |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Pull Side |
| Mounting Style | Slide Track |
| Hold Open | No |
| Hand | LH or RH |
| Degree Swing | 180 Deg. |
| Cover | Full Metal |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
