Description

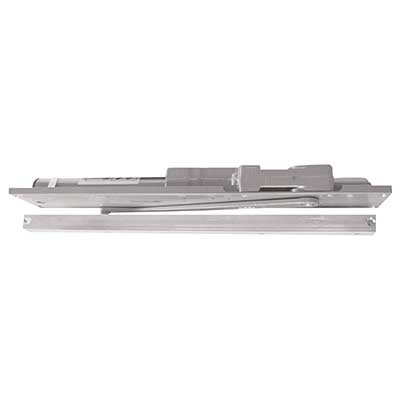

LCN 6034-H-Bumper-689 Concealed Double Acting Track Door Closer with Hold Open And Bumper, Size 4, Non Handed, 95 Degree Swing, 689 Powder Coat Aluminum
6030 Series Concealed Closers
LCN's 6030 Series is a heavy duty, double acting closer designed to fit a narrow transom.
The single lever arm and roller assembly of the 6030 Series provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).
- Standard 6030 series closer shipped with standard arm, standard track with bumper, mounting/finish plate and wood and machine screw pack
- Sized, double acting cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Adjustment of spring power and latch speed independent for either swing
- Backcheck and general speed adjustment are common for both swings
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and mounting/finish plate
- Optional SRI primer for installations in corrosive conditions
Product Specs
| Manufacturer | LCN |
| SKU | 6034-H-BUMPER AL |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 15 Years |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Concealed Overhead |
| Technology | Hydraulic |
| Mounting Location | In Header |
| Hold Open | Yes |
| Hand | Non-Handed |
| Degree Swing | 95 Deg. |
| Cold Weather Fluid | Yes |
| Product Type | Concealed-in-Door Closers |
