Description

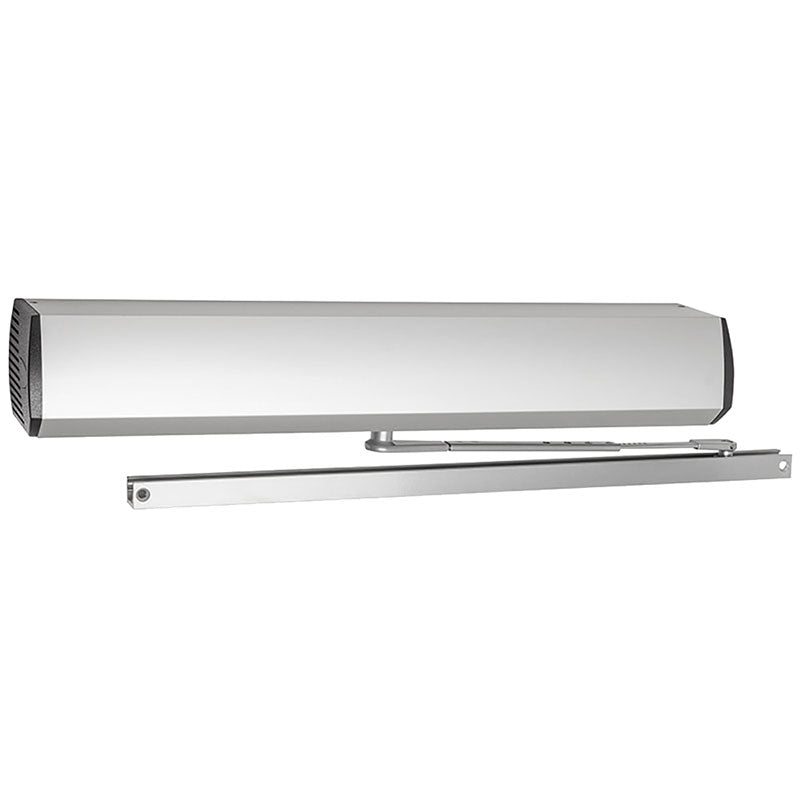

The LCN 9131-STD-628-MC, is a Grade 1, Low Energy Electromechanical Benchmark Door Operator that is 120V, has Pull Side Mounting, has a Metal cover, comes with a Slide Track Arm Standard, for Door Sizes 30" - 48" for doors up to 200 lbs, and comes in a Clear Anodized Aluminum Finish.
9130 Series Electromechanical Benchmark Operators
The LCN 9130 Benchmark Series is an electrically powered low-energy operator.
The LCN 9130 Series provides easy access for people with disabilities, the elderly or the frail. It is designed primarily for automatic opening applications that occasionally require manual opening. The Benchmark is a cost-effective solution for retrofitting an activated or manual door.
- 9130 series operator is shipped with motor gearbox, control box, mounting plate, standard arm, metal cover, standard track, wood and machine screws
- Single interior door, surface-mounted
- ADA compliant
- On/Off switch included as standard
- Non-handed for either right or left swinging door
- 27” cover is standard. Full length covers available up to 36” for single doors
- All potentiometers clearly labeled with their functions
- LED lights indicate power to control box and motor gearbox
Product Specs
| Manufacturer | LCN |
| SKU | 9131-STD 628 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Aluminum |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| ADA Compliance | Yes |
| Finish | 628/US28 |
| Finish Description | Satin Aluminum Clear Anodized |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Electromechanical |
| Mounting Location | Pull Side |
| Mounting Style | Offset |
| Hold Open | Yes |
| Hold Open Type | Electric |
| Degree Hold Open | 90 Deg. |
| Arm Type | Slide Track Arm Standard |
| Degree Swing | 90 Deg. |
| Back Check | Adjustable |
| Delay | Yes |
| Cover | Metal |
| Screw Type | Machine and Wood |
| Door Size | 30" - 48" |
| Door Weight | 200 lbs. |
| Reveal Size | 0 - 1/8" |
| Voltage | 120V |
| Bracket | Included |
| Physically Handicapped | Yes |
| Cold Weather Fluid | Yes |
| Product Type | Door Operators |
