LE Johnson 152068HD 24" x 80" 1500HD Series Heavy Duty Pocket Door Frame, For 1" to 1 3/4" Thick 24" Wide Doors up to 200 LBS Each

  • SKU: 152068HD
LE Johnson 152068HD 24" x 80" 1500HD Series Heavy Duty Pocket Door Frame
LE Johnson 152068HD 24" x 80" 1500HD Series Heavy Duty Pocket Door Frame
LE Johnson 152068HD 24" x 80" 1500HD Series Heavy Duty Pocket Door Frame Drawing
All LE Johnson Products

LE Johnson 152068HD 24" x 80" 1500HD Series Heavy Duty Pocket Door Frame, For 1" to 1 3/4" Thick 24" Wide Doors up to 200 LBS Each

  • SKU: 152068HD
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$407.00 /ea

The LE Johnson 152068HD  is a 24" (2'-0") x 80" (6'-8") 1500HD Series Heavy Duty Pocket Door Frame Kit, that can accommodate 24" max width doors 1" to 1 3/4" thick and up to a max weight of 200 lbs.

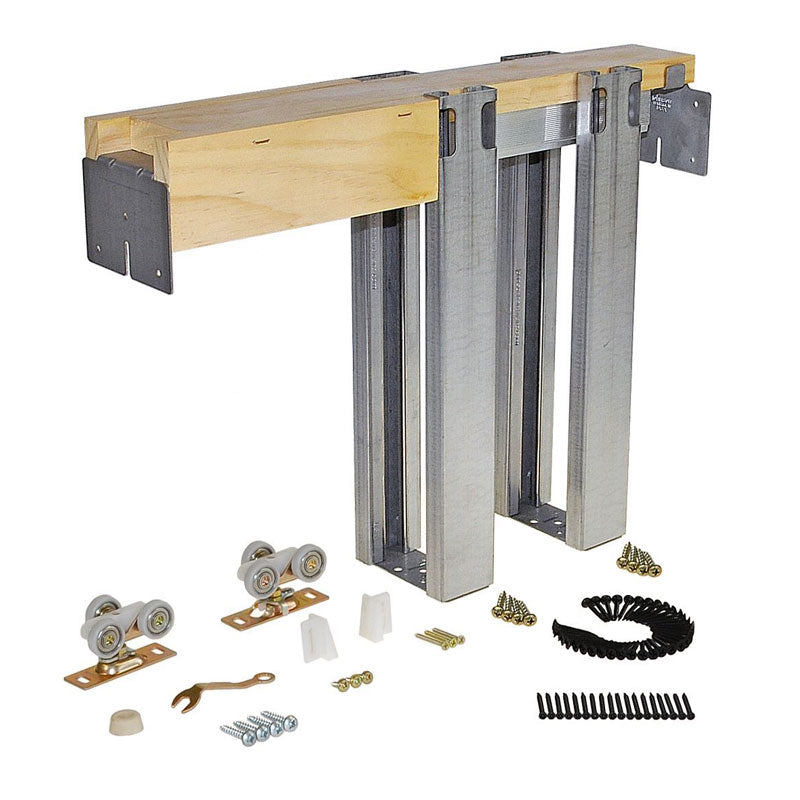

Kit Contains:

1- Header (Factory Assembled)
4 - All Steel Split Stud Lengths
2 - 512085 Split Stud Floor Brackets
2 - 1125 Ball Bearing Door Hangers
1 - 1550 Pocket Door Guide
1 - 1513 Door Bumper
1 - 1712 Adjustment Wrench
 Hardware Mounting Screws



Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 24" (2'- 0") [609mm]
Max. Door Height 80" (6'- 8") [2032mm]
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Product Cut Sheet
