Description

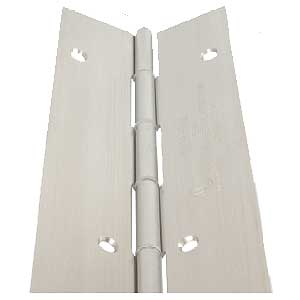

Markar FM300-83-RB is a Heavy Duty 83.125" 630/US32D Satin Stainless Steel Edge Mounted Raised Barrel Continuous Hinge 83" Length
The Markar 300 Series Continuous Hinges are manufactured from heavy-duty 14 gauge 304 stainless steel and support weights up to 600 lbs.
Markar FM300-83-RB Features
- Supports weights up to 600lbs.
- Raised Barrel
- 4'0" maximum door width
- Symmetrically templated
- Heavy-duty 14 gauge stainless steel
- US32D Satin Stainless Steel (630)
- Edge Mount
- .187" diameter stainless steel pin (rod)
- Flanged nylon bearings
Markar FM300-83-RB Specifications
| Finish: | Satin Stainless Steel |
| Length: | 83.125" |
| Width: | 2-1/4" |
| Leaf Thickness: | 0.083" |
| Manufacturer: | Markar |
Markar FM300-83-RB Certifications
| BHMA: | ANSI/BHMA Standard A156.26 Grade 1 |
| UL: | Classified in accordance with UBC standard 7-2 for positive pressure 20 minutes wood doors 90 minutes hollow metal and composite core wood fire doors 3 hours hollow metal doors mounted singly |
