Description

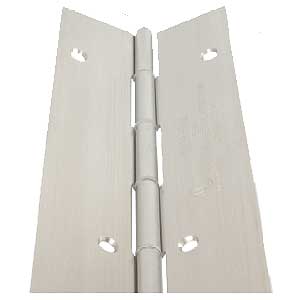

Markar FM300-95 is a Heavy Duty 95" 630/US32D Satin Stainless Steel Edge Mounted Continuous Hinge 95" Length
The Markar 300 Series Continuous Hinges are manufactured from heavy-duty 14 gauge 304 stainless steel and support weights up to 600 lbs.
Markar FM300-95 Features
-
Supports weights up to 600lbs.
-
4'0" maximum door width
-
Symmetrically templated
-
Heavy-duty 14 gauge stainless steel
-
US32D Satin Stainless Steel (630)
-
Edge Mount
-
.187" diameter stainless steel pin (rod)
-
Flanged nylon bearings
Markar FM300-95 Specifications
|
Finish: |
Satin Stainless Steel |
|
Length: |
95" |
|
Width: |
2-1/4" |
|
Leaf Thickness: |
0.083" |
|
Manufacturer: |
Markar |
Markar FM300-95 Certifications
|
BHMA: |
ANSI/BHMA Standard A156.26 Grade 1 |
|
UL: |
Classified in accordance with UBC standard 7-2 for positive pressure 20 minutes wood doors 90 minutes hollow metal and composite core wood fire doors 3 hours hollow metal doors mounted singly |
