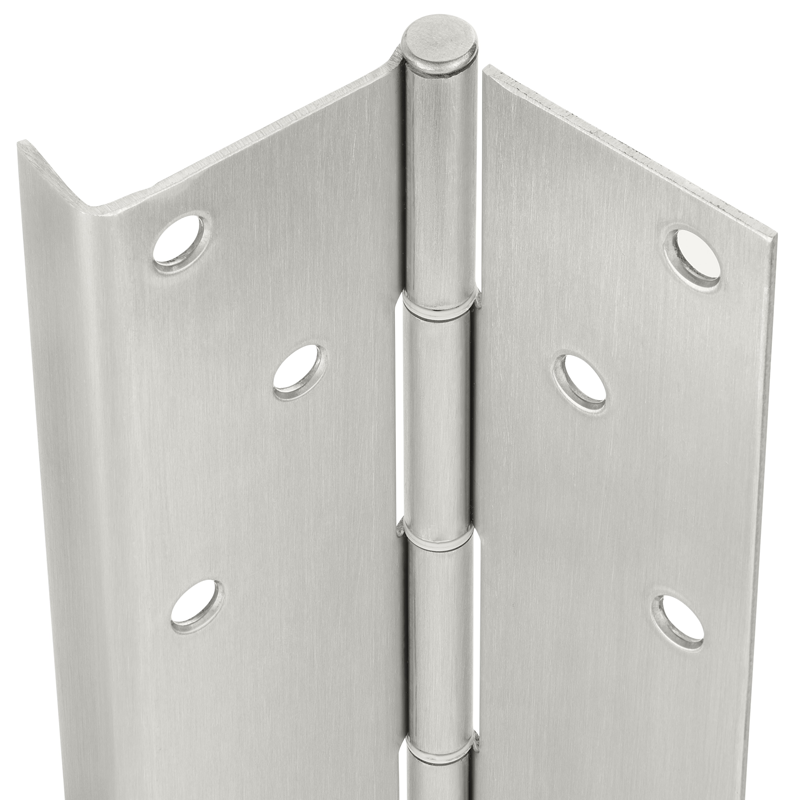

Markar HG315-83-RB 83" Edge Mounted Fire-Rated Pin & Barrel 630/US32D Stainless Steel Raised Barrel Continuous Hinge with Guard Support doors weighing up to 600 pounds.
The Markar 300 Series Continuous Hinges are manufactured from heavy-duty 14 gauge 304 stainless steel and support weights up to 600 lbs. Featuring Markar's unique edge guard, this economical hinge prevents objects from being placed between the door and frame and protects the door's edge while supporting the door's weight along the entire length of the jamb.
Features:
Supports weights up to 600 lbs.
Raised Barrel
4'0" maximum door width
Symmetrically templated
Heavy-duty 14 gauge stainless steel
US32D Satin Stainless Steel (630)
Edge Mounted
.187" diameter stainless steel pin (rod)
Flanged nylon bearings
Specifications
Finish:
Satin Stainless Steel
Length:
83.125"
Manufacturer:
Markar
Certifications
BHMA:
ANSI/BHMA Standard A156.26 Grade 1
UL:
Classified in accordance with UBC standard 7-2 for positive pressure 20 minutes wood doors 90 minutes hollow metal and composite core wood fire doors 3 hours hollow metal doors mounted singly
