Product Specifications
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 180SSK/32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours |
| Burglar Rated | No |
| ADA Compliance | No |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |
Technical Specifications
| Function | K Cylinder by Turn Piece |
| ANSI Function | Cylinder by Turn Piece |
| Lever/Knob Design | 180SSK |
| Lever/Knob Design Family | Anti-Ligature Knob |
| Cylinder Type |
Key in Lever Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schl C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Latch Bore Diameter | 1" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 1136 |
| Std. Strike Type | T-Standard Strike |
| Std. Strike Height | 2-3/4" |
| Std. Strike Width | 1-1/8" |
| Screws | Combination |
| Product Type | Cylindrical Lock |

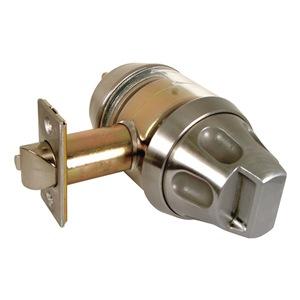

Marks 180SSK/32D Grade 1, Key in Lever Cylinder, Anti-Ligature Knob, US32D Stainless Steel Finish
The Marks 180SSK is a Ligature Resistant Knob cylindrical lock with a 2 1/8" bore, a 2 3/4" backset. The SSK function is the cylinder is activated by the Turn Piece. These locks are not handed and come in a US32D/630 Stainless Steel Finish
