Description

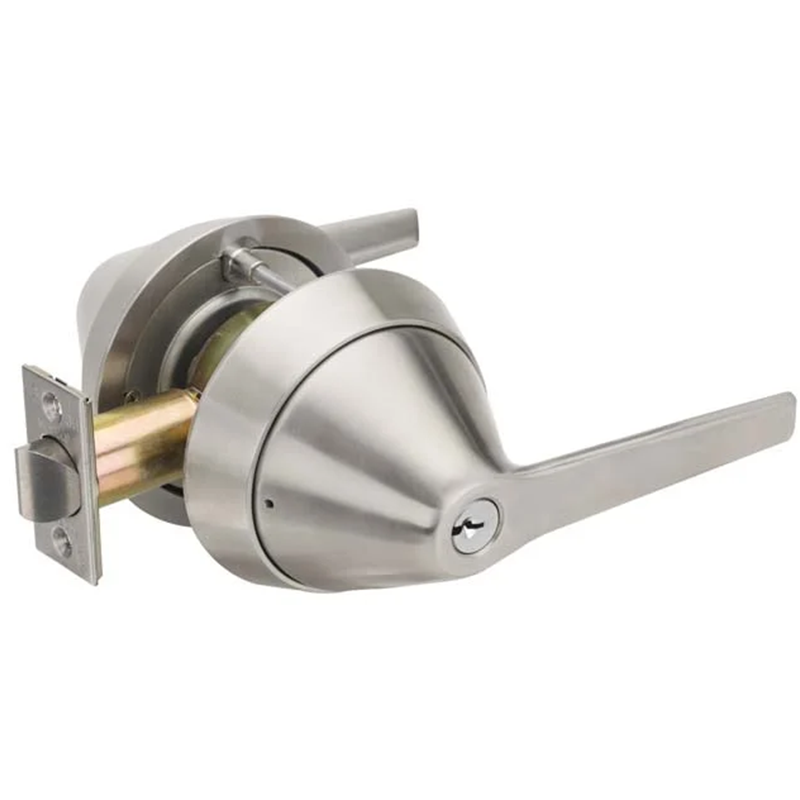

Marks USA 195SSAQ/32D Anti-Ligature Lever Exit Lockset, Schlage "C" Keyway, Keyed Random, [2] Keys, 2-3/4" Backset, ASA Strike, US32D Satin Stainless Steel
The Marks USA 195SSAQ is a Ligature Resistant Cylindrical Lever Lockset with a 2 1/8" bore, and 2 3/4" backset. AQ is an Exit Function. The finish is a US32D/630 Stainless Steel Finish. The locks come with a Schlage C fixed core keyed randomly.
Technical Specifications
| Function |
AQ EXIT |
| ANSI Function |
F83 |
| Lever/Knob Design | 195 SS |
| Lever/Knob Design Family | Anti-Ligature Lever |
| Rose/Escutcheon Design |
3-13/16" Diameter |
| Cylinder Type |
Key in Lever Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schl C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 1-7/8" |
| Std. Latch Number | 1834A |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 9/16" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 1135 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
Â
Product Specifications
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 195SSAQ/32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours |
| Burglar Rated | No |
| ADA Compliance | No |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |
