Description

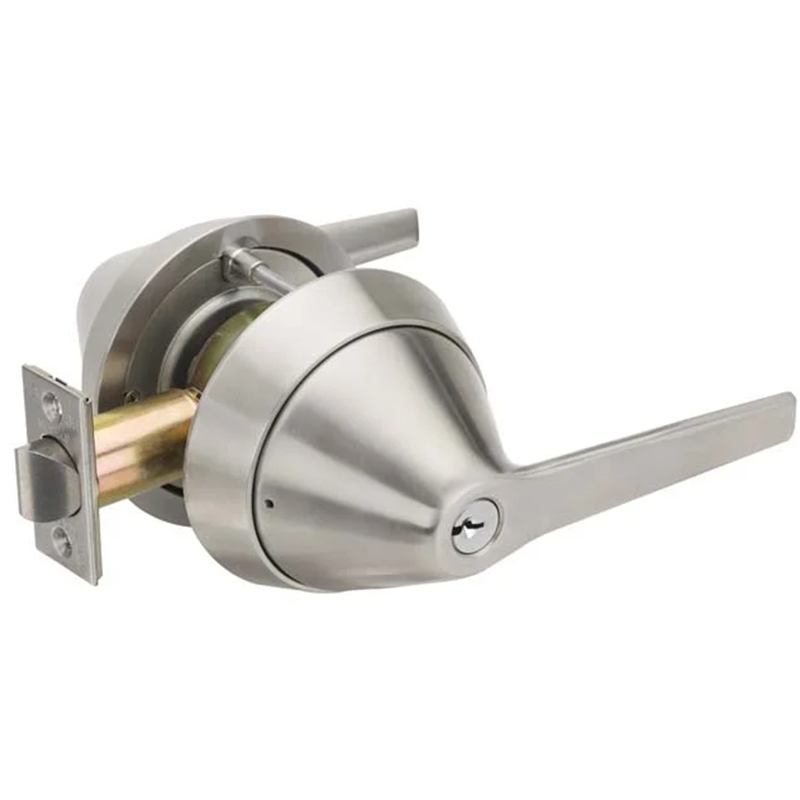

Marks USA 195SSB/32D Anti-Ligature Lever Entry Lockset, Schlage "C" Keyway, Keyed Random, [2] Keys, 2-3/4" Backset, ASA Strike, US32D Satin Stainless Steel
The Marks Ligature Resistant 195SSB is a grade 1 Cylindrical Anti Ligature Lock with a 2 1/8" bore, and 2 3/4" backset. The B function is an Entrance Function, Non-handed. The cylinder is a Schlage C fixed core keyed randomly in a US32D/630 Stainless Steel Finish
Technical Specifications
Function | B Entrance |
ANSI Function |
F82A |
Lever/Knob Design | 195SSB Ligature |
Lever/Knob Design Family | Anti-Ligature Lever |
Rose/Escutcheon Design |
3-13/16" Diameter |
Cylinder Type |
Key in Lever Cylinder |
Num Pins | 6 |
Std. Keyway | Schl C |
Keying | Keyed Different |
Key(s) | Cut |
Num of Keys | 2 |
Handing | Non-Handed |
Door Thickness | 1-5/8" to 1-7/8" |
Std. Latch Number | 1834A |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 1" |
Lock Face Size | 2-1/4" x 1-1/8" |
Bolt Projection | 9/16" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 1135 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Cylindrical Lock |
Product Specifications
Vendor | Napco Security Technologies |
Manufacturer | Marks |
SKU | 195SSB/32D |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL 10C |
ANSI Number | A156.2 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | Lifetime |
Fire Rated | 3 Hours |
Burglar Rated | No |
ADA Compliance | No |
Finish | 630/US32D |
Finish Description | Satin Stainless Steel |
Finish Family | Matte Silver |
