Product Specifications
|
Vendor |
Napco Security Technologies |
|
Manufacturer |
Marks |
|
SKU |
195SSDA/32D |
|
Grade |
Grade 1 |
|
Installation |
Commercial |
|
Origin |
USA |
|
Unit of Measure |
Each |
|
UL Listing Type |
UL 10C |
|
ANSI Number |
A156.2 |
|
Restrictions |
None |
|
BAA Qualified |
Yes |
|
Limited Warranty |
Lifetime |
|
Fire Rated |
3 Hours {A} |
|
Burglar Rated |
No |
|
ADA Compliance |
No |
|
Finish |
630/US32D |
|
Finish Description |
Satin Stainless Steel |
|
Finish Family |
Matte Silver |
Technical Specifications
|
Function |
DA Vestibule |
|
ANSI Function |
F88 |
|
Lever/Knob Design |
195SS Ligature Resistant |
|
Lever/Knob Design Family |
Anti-Ligature Lever |
|
Rose/Escutcheon Design |
3-13/16" Diameter |
|
Cylinder Type |
Key in Lever Cylinder |
|
Num Pins |
6 |
|
Std. Keyway |
Schl C |
|
Keying |
Keyed Different |
|
Key(s) |
Cut |
|
Num of Keys |
2 |
|
Handing |
Non-Handed |
|
Door Thickness |
1-5/8" to 1-7/8" |
|
Std. Latch Number |
1834A |
|
Std. Latch Type |
Dead Latch (Guarded) |
|
Std. Latch Backset Dim |
2-3/4" |
|
Latch Bore Diameter |
1" |
|
Lock Face Size |
2-1/4" x 1-1/8" |
|
Bolt Projection |
9/16" |
|
Bore Hole Diameter |
2-1/8" |
|
Std. Strike Number |
1135 |
|
Std. Strike Type |
ANSI Strike |
|
Std. Strike Height |
4-7/8" |
|
Std. Strike Width |
1-1/4" |
|
Screws |
Combination |
|
Product Type |
Cylindrical Lock |

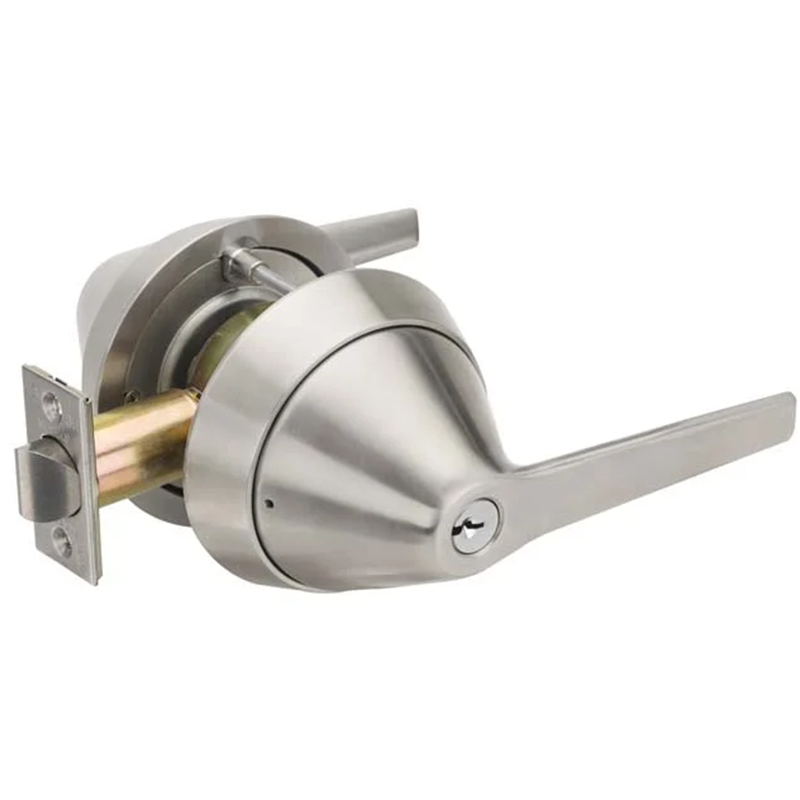

Marks USA 195SSDA/32D Anti-Ligature Lever Vestibule Lockset, Schlage "C" Keyway, Keyed Random, [2] Keys, 2-3/4" Backset, ASA Strike, US32D Satin Stainless Steel
The Marks Ligature Resistant 195SSDA is a grade 1 Cylindrical Anti Ligature Lock with a 2 1/8" bore, and 2 3/4" backset. The DA function is a Vestibule Function, Non-handed. The cylinder is a Schlage C fixed core keyed randomly in a US32D/630 Stainless Steel Finish
