Description

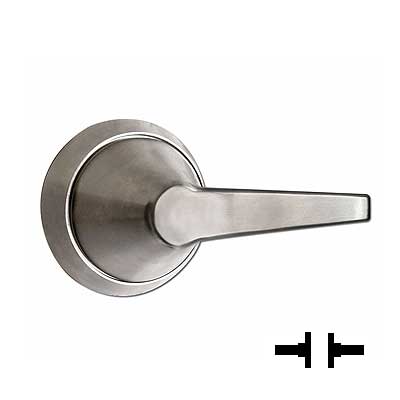

Marks USA 195SSDT/32D Anti-Ligature Lever Double Dummy Trim, US32D Satin Stainless Steel
The Marks USA 195SSDT is a Cylindrical Ligature Resistant Lever Lock, Double Dummy Function. This lock has a 2 1/8" bore, and a 2 3/4" backset. These locks are not handed and come with a US32D/630 Stain Stainless Steel Finish
Technical Specifications
| Function | DT Fully Dummy Trim |
| Lever/Knob Design | 195SS |
| Lever/Knob Design Family | Anti-Ligature Lever |
| Rose/Escutcheon Design |
3-13/16" Diameter |
| Cylinder Type |
Non-keyed |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 1-7/8" |
| Latch Bore Diameter | 1" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 1135 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
Product Specifications
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 195SSDT/32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |
