Description

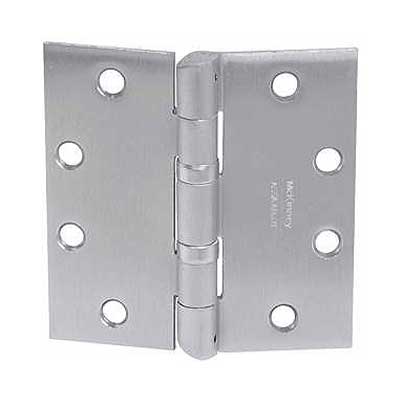

McKinney HTA2314 - 4 1/2" x 4 1/2" US32D Five Knuckle Bearing Hinge, Hospital Tip Non-Removable Pin US32D/630 Stainless Steel Finish
McKinney HTA2314 - 4 1/2" x 4 1/2" Five Knuckle Bearing Hinge Full Mortise, Standard Weight, Hospital Tip, Non-Removable Pin, Satin Stainless Steel Finish. Ideal For Institutional And Commercial Applications.
Features
- NRP (Non-Removable Pin)
- Hospital Tip
- Full Mortise
- 5 Knuckle
- Recommended for standard weight, medium frequency doors, or doors with closing devices.
- Steel base polished and plated or furnished in powder coat
- Finishes available: US32D
- The gauge of metal: .134
Specifications
|
Material: |
Steel |
|
Hinge Size: |
4.5" x 4.5" |
|
Wood Screw: |
1-1/4 x 12 F.H. |
|
Machine Screws: |
1/2 x12-24 F.H |
|
Number of Holes: |
8 |
Certifications
|
ANSI: |
A8133 |
