Description

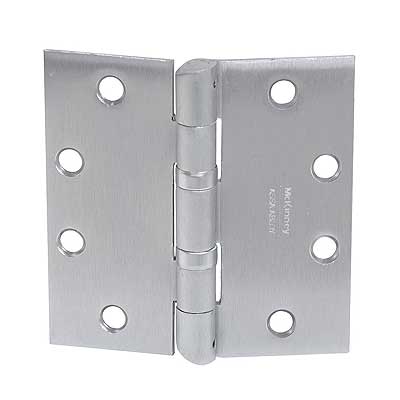

McKinney HTA2714 - 4 1/2" x 4 1/2" US26D Ball Bearing Hinge Hospital Tip Five Knuckle
McKinney HTA2714 - 4 1/2" x 4 1/2" US26D Five Knuckle Bearing Hinge with a Hospital Tip Full Mortise, Standard Weight in Satin Chrome Finish. The HTA2714 Hinge Is Used In Health Care Facilities And Commercial Spaces.
Features
- NRP (Non-Removable Pin)
- Full Mortise
- 5 Knuckle
- Recommended for standard weight, medium frequency doors, or doors with closing devices.
- Steel base polished and plated or furnished in powder coat
- Finishes available: US26D
- The gauge of metal: .134
Specifications
| Material: | Steel |
| Hinge Size: | 4 1/2" x 4 1/2" |
| Wood Screw: | 1 1/4" x 12 F.H. |
| Machine Screws: | 1/2 x12-24 F.H |
| Number of Holes: | 8 |
Certifications
| ANSI: | A8133 |
