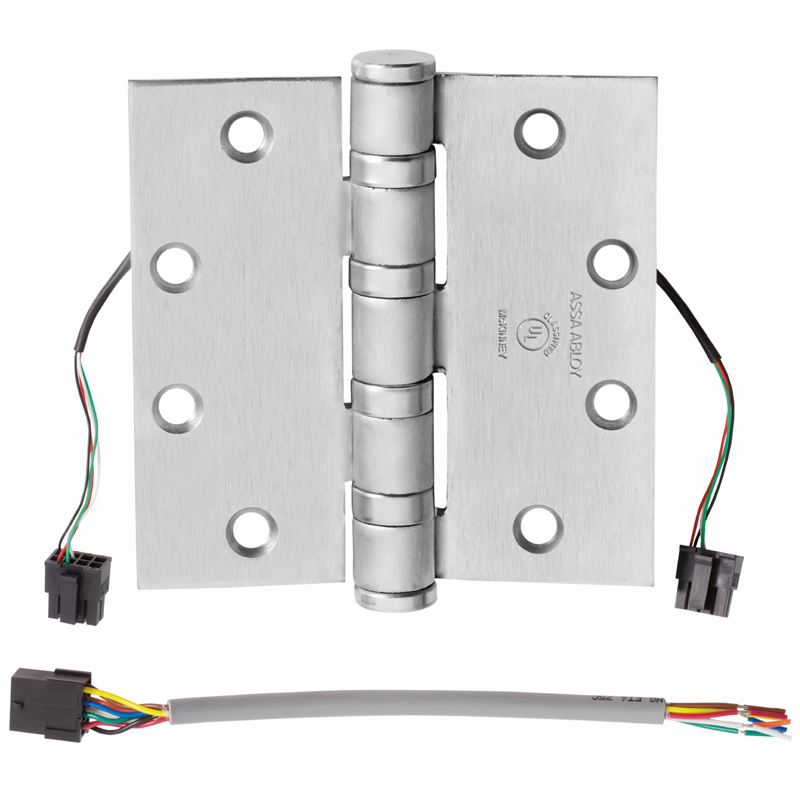

McKinney T4A3386-QC4 4 1/2" x 4 1/2" US32D ElectroLynx Electric Hinge, 630 Satin Stainless Steel
The McKinney T4A3386-QC4 is a precision-engineered 4 1/2" x 4 1/2" electric hinge featuring ElectroLynx technology for seamless electrical connectivity. Finished in durable 630 satin stainless steel (US32D), it offers corrosion resistance and a sleek appearance suitable for high-traffic commercial applications. This hinge integrates power transfer within the hinge mechanism, simplifying installation and enhancing reliability for electrified door hardware systems. Ideal for secure, efficient access control solutions requiring robust performance and professional-grade quality.
Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals, or other public buildings where heavy traffic is experienced. McKinney electric hinges are UL listed and may be used on fire-rated doors for up to 3 hours.
An 8-position connector is used for QC4 and QC8 wire hinges.
An 8-position and a 4-position connector are used for QC12 wire hinges.
Features:
- Full Mortise
- 5 Knuckle
- Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals, or other public buildings where heavy traffic is experienced.
- Stainless Steel base
- 4 amp continuous @ 24 volts AC or DC per circuit
- 28 gauge multi-strand wires are used.
- A pigtail is provided for connection to the source wiring
- Finishes available: US26D
- The gauge of metal: .180
