Description

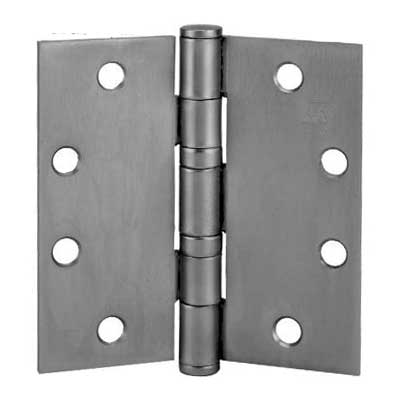

McKinney TA2314-4.5X4.5-NRP-US32D Five Knuckle Bearing Hinge, Non-Removable Pin US32D/630 Stainless Steel Finish
McKinney TA2314 4-1/2" x 4-1/2" Five Knuckle Bearing Hinge Full Mortise, Standard Weight, Non-Removalbe Pin, Satin Stainless Steel Finish. The TA2314 Bearing Door Hinge Is Ideal For Use In Institutions and Commercial Facilities, Both Interior Or Exterior Doors.
Features
- Available with NRP (Non-Removable Pin)
- Full Mortise
- 5 Knuckle
- Recommended for standard weight, medium frequency doors, or doors with closing devices.
- Steel base polished and plated or furnished in powder coat
- Finishes available: US32D
- The gauge of metal: .134
Specifications
| Material: | Steel |
| Hinge Size: | 4.5" x 4.5" |
| Wood Screw: | 1-1/4 x 12 F.H. |
| Machine Screws: | 1/2 x12-24 F.H |
| Number of Holes: | 8 |
Certifications
| ANSI: | A8133 |
