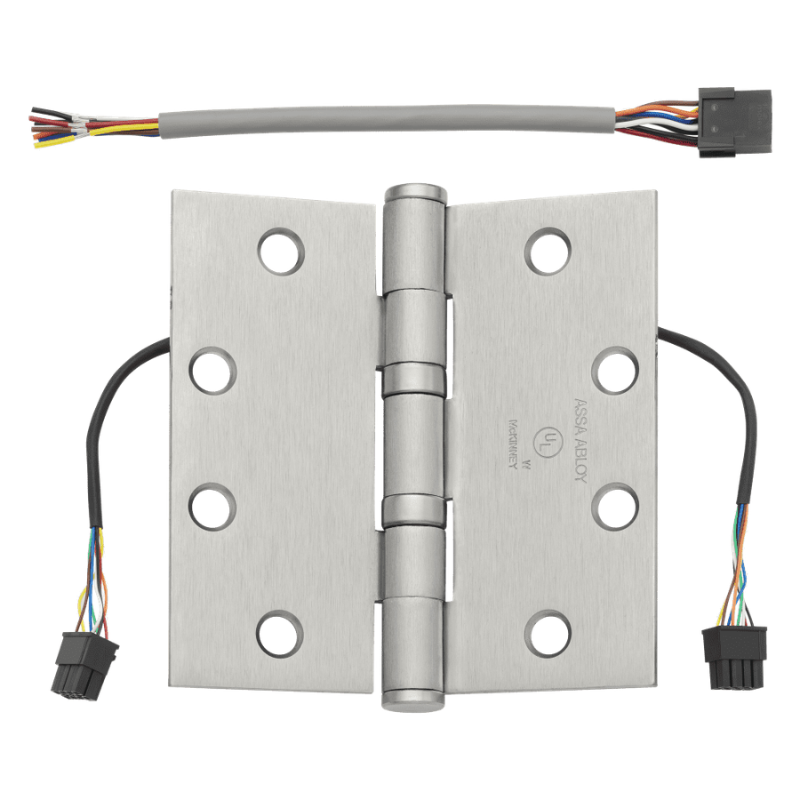

McKinney TA2714-5x4-1/2-US26D-QC12 Electrified Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 5" x 4-1/2", [12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney TA2714-5x4-1/2-US26D-QC12 is an electrified full mortise hinge engineered to carry power through the door opening for electric locks, exit devices, and other access control hardware. Built on McKinney's TA2714 standard weight, five knuckle ball bearing platform, this 5" x 4-1/2" hinge features 12 concealed wires fitted with a Quick Connect (QC) plug for faster, tool-free electrical connections during installation. The square corner design suits standard commercial door preps, while the durable satin chrome (626/US26D) finish delivers a clean, corrosion-resistant appearance well suited to heavy-traffic openings. It's a dependable choice for schools, healthcare facilities, and office buildings where reliable power transfer is essential.

Features

• Electrified full mortise hinge that transfers power from frame to door without an external power transfer device.
• 12 concealed wires provide ample capacity for locks, exit devices, and monitoring circuits.
• Quick Connect (QC) plug allows fast, reliable electrical connections during installation.
• Five knuckle design with ball bearings ensures smooth, long-lasting operation.
• Standard weight construction supports typical commercial door applications.
• Square corner template fits common door and frame preps.
• Satin chrome 626/US26D finish offers a refined look with strong corrosion resistance.

Functional Details

The electrified hinge routes wiring through the barrel and leaves so power passes seamlessly from the frame side to the door side, keeping conductors concealed and protected. The Quick Connect option pre-terminates the wires with a plug-and-play connector, reducing wiring time and simplifying troubleshooting.

• 12 wire configuration with Quick Connect (QC) connectors.
• Concealed wiring provides power transfer for electrified door hardware.
