All MCKINNEY Products
Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Mounting Style | Square |
| Knuckles | 3 |
| Height | 5" |
| Width | 4-1/2" |
| Weight | Heavy Weight |
| Product Type | Hinges |
Product Specs
| Manufacturer | McKinney |
| SKU | TA5792 5x4-1/2 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Steel |

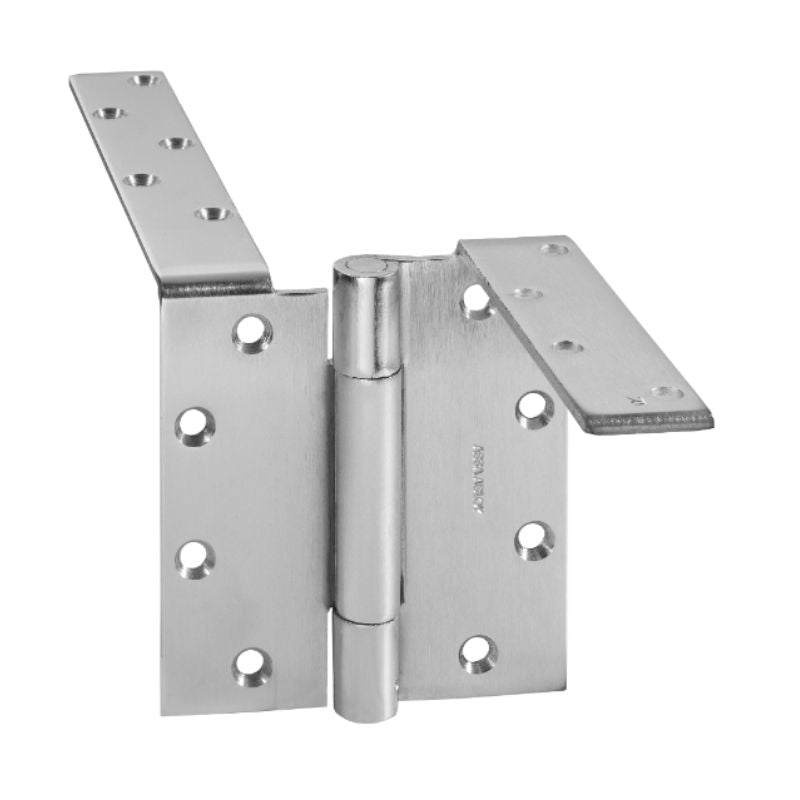

McKinney TA5792-5x4.5-US26D Three Knuckle Heavy Weight Full Mortise Hinges, Set Includes [1] 5" Top Anchor Hinge, And [2] 5" x 4 1/2" Hinges, For High Traffic Doors, Satin Chrome Finish
McKinney TA5792-5x4.5-US26D Three Knuckle Full Mortise Hinges Set, in Satin Chrome, is specifically designed for high traffic doors. The set includes [1] 5" Top Anchor Hinge and [2] 5" x 4 1/2" Hinges, making it a heavy weight and durable option.
Anchor Hinge
On high frequency and/or heavy wood or metal doors, additional anchoring of the hinges into the door and jamb may be necessary. This is a common application in schools, hospitals or any other buildings where heavy traffic and unusual strain on the doors, jamb and hinges is experienced. Recommended to hang door for 80˚ swing: Full Mortise Anchor Hinge. Sold in sets of one full mortise anchor hinge and two heavy weight full mortise hinges.
Note: Anchor hinges are handed and sold for either square edge doors on hinge side or beveled (1/8" in 2") edge doors on hinge side. Hand and bevel (McKinney hinges use uses a "5" in front of the item number to indicate 1/8" in 2" bevel. Example: TA5792 should be specified.
